Lunar UD Up/Down Light

Cyanlite Architectural LED Round Panel Light - LUNAR UD

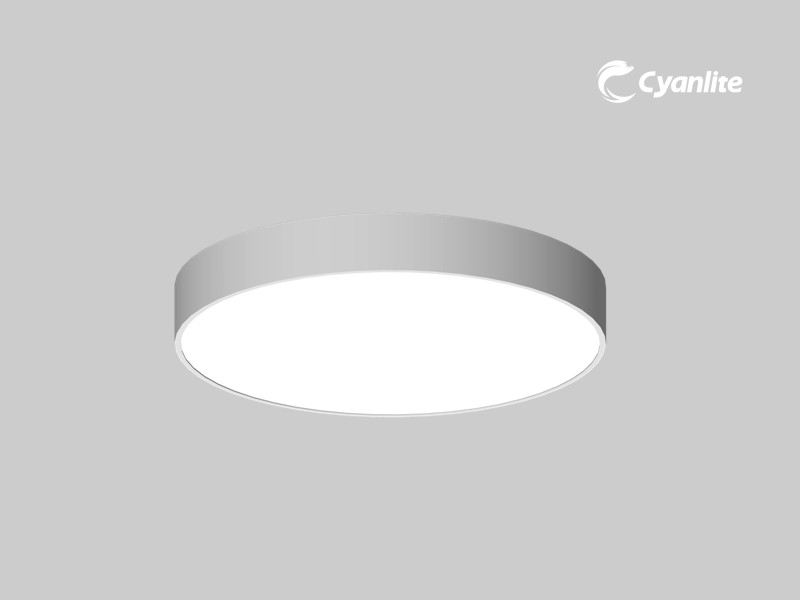

The Cyanlite™ round panel light Lunar series are stylish designed backlite luminaires, with a wide range from diameter 30cm to 120cm. Lunar floats below the ceiling like a moon. With its uniform, glare-free light and modern, purist design this series of round luminaires lends any room a special look, and is ideal for e.g. creative zones, VDU workstations and prestigious sales spaces.

The standard Lunar comes with Surface Mounted installation kit, and you can have it Pendant installed with optional suspension wire kit or stem mounting kit. Besides this, Lunar series also has Recessed version and Trimless Recessed version to meet different requirements of architects and projects.

• Advantages

-          A strong family with various installation ways: Recessed/Surface Mounted/Pendant

-          Easy and fast installation, saving installation cost

-          Lunar has a wide product range with down light only and direct/indirect light options

-          Flexible and customization oriented, bespoke specification are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

• Features

l   Standard sizes (mm): ⌀300/ ⌀400/ ⌀480/ ⌀600/ ⌀900/ ⌀1200 (mm)

l   RAL9016 as standard, other RAL colors available on request

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

• Specifications

Standard Surface Mounted Lunar Up/Down Light

Model	Part No.	Power	Luminous Flux	Dimension (mm)
D50-UD	BR50WD50S-UD	50W	1700lm↑2550lm↓	⌀480x95
D60-UD	BR80WD60S-UD	80W	2550lm↑4250lm↓	⌀600x95
D90-UD	BRH2WD90S-UD	120W	4080lm↑6120lm↓	⌀900x95
D120-UD	BRH5WDH2S-UD	150W	4250lm↑8500lm↓	⌀1200x95

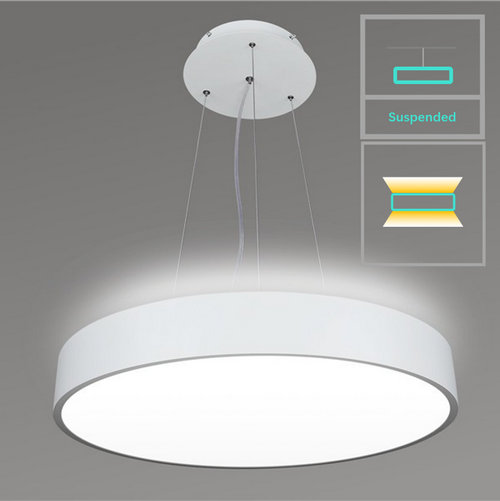

Standard Surface Mounted Lunar + 1.5meter Suspension Wire Pendant Installation Kit Up/Down Light

Model	Part No.	Power	Luminous Flux	Dimension (mm)
D50-UD	BR50WD50SP-UD	50W	1700lm↑2550lm↓	⌀480x95
D60-UD	BR80WD60SP-UD	80W	2550lm↑4250lm↓	⌀600x95
D90-UD	BRH2WD90SP-UD	120W	4080lm↑6120lm↓	⌀900x95
D120-UD	BRH5WDH2SP-UD	150W	4250lm↑8500lm↓	⌀1200x95

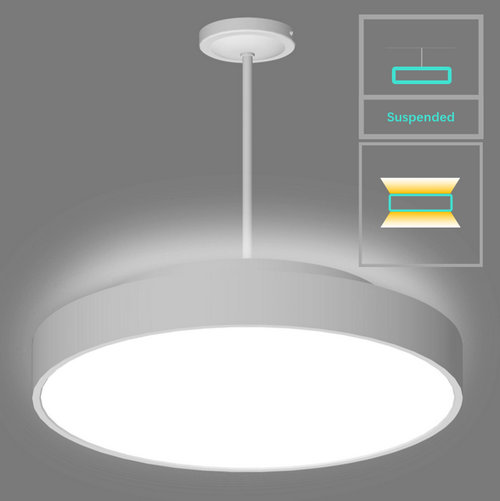

Standard Surface Mounted Lunar + Stem Mounting Pendant Installation Kit Up/Down Light

Model	Part No.	Power	Luminous Flux	Dimension (mm)
D50-UD	BR50WD50SM-UD	50W	1700lm↑2550lm↓	⌀480x95
D60-UD	BR80WD60SM-UD	80W	2550lm↑4250lm↓	⌀600x95
D90-UD	BRH2WD90SM-UD	120W	4080lm↑6120lm↓	⌀900x95
D120-UD	BRH5WDH2SM-UD	150W	4250lm↑8500lm↓	⌀1200x95

• Light Distribution

• Dimension

• Installation

• Certifications

• Downloads

Cyanlite LED architectural lighting LUNAR datasheet/installation manual/photometric data download
