Cyanlite LED T grid linear light Timo Opalic OP
The Cyanlite™ LED T grid linear TIMO series has been designed specifically for T15/T24 T bars. The installation is very simple, no need to modify or change anything on orgininal T-bar or ceilings; the connection is very easy, Timo is driven by 24V DC safe low voltage, so one driver can power up multiple Timo models, and this makes the wiring and connection job much easier for installer. Thanks to our unique circuit design, upto 10pcs (6 meters) Timo linear lights can be linked together without voltage drop or brightness unconformity. The architects and customers can use their imagination to get any pattern they want on the ceiling, all patterns are possible and there is no limit.
• Advantages
- Specifically designed for surface mounted installation on T15/T24 T bars/T grids
- One driver to power multiple light models, loop-in/loop-out design, extremely easy for wiring
- Easy and fast installation, no need to modify anything on orginal T bar/T grid and ceilings

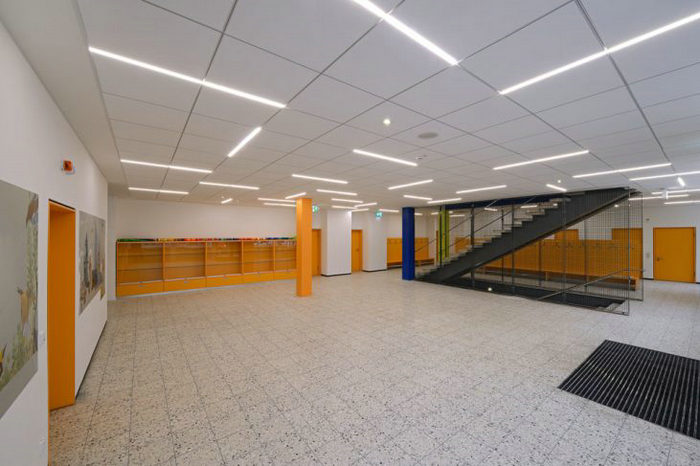

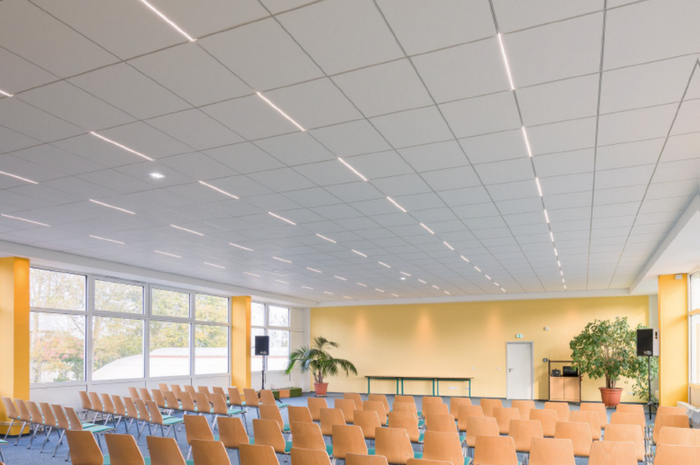

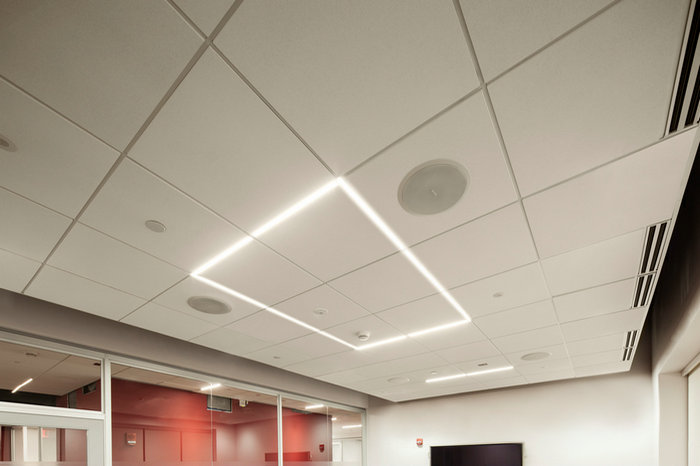

- Flexible and customization oriented, all grid patterns are possible, no limit from primary runner/ main bar
- Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership
• Features
l Standard sizes (mm): 600, 625, 1200, 1250
l RAL9016 as standard coating colors, other RAL colors available on request
l System Efficiency upto 120 lm/W
l EN 12464-1& LG7 Compliant, UGR<16 and UGR<19 Optional
l Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K
l 5 Years Warranty
l Various dimming options, including 0-10V, DALI, Switch Dim etc.
l Emergency options available
• Dimensions
• Specifications
Model
Part Number
Dimension
Power
Lumen Output
Beam
TB15W060TOP
600x26x20
15
1800 lm
120°
TB15W062TOP
625x26x20
15
1800 lm
120°
TB30W120TOP
1200x26x20
30
3600 lm
120°
TB30W125TOP
1250x26x20
30
3600 lm
120°
(mm)
(W)
- Light Distribution
• Installation
• Connection
• Driver
• Certifications
• Downloads
Cyanlite LED T grid linear TIMO datasheet/installation manual/photometric data download
