The Cyanlite™ LED panel lights BOLLO series has been designed specifically for Sport applications with IK10 and IP40 protection. The robust PC prismatic diffuser and up to 20,000 lumen output performance perfectly meet the requirements of the most indoor sports applications with high ceilings. BOLLO can be easily installed as Recessed, Surface Mounted and Suspended. 130lm/w High Efficiency ensures huge electricity savings and low operation cost.

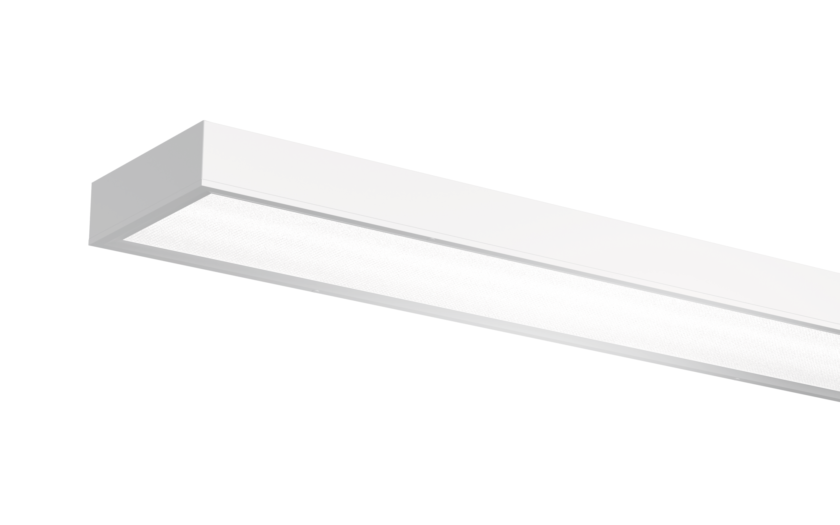

_a.png "Cyanlite BOLLO IK10 LED light for Sport application")
.png "Cyanlite BOLLO IK10 LED light for Sport application back side")
_a.png "Cyanlite BOLLO IK10 LED light for Sport application front side")
_a.png "Cyanlite BOLLO IK10 LED light for Sport application")

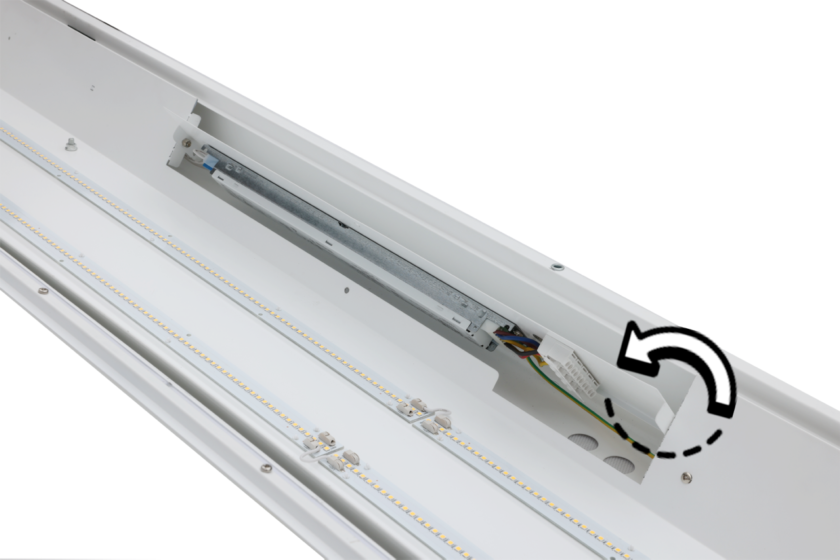

_a.png "Cyanlite BOLLO IK10 LED light for Sport application driver plate")
• Applications
- Specifically designed for sports applications
- Easy and fast installation, saving installation cost
- Flexible and customization oriented, bespoke sizes are welcome
- Different Installations methods: Recessed, Surface Mounted and Suspended
- DIN 18032-3, EN 60598-2-22 compliance
• Specifications
Part No.
Dimension
(mm)
Power
Luminous
Beam
Angle
PB60W316B-SP
315x1540x96
60W
8000 lm
90°
PB90W316B-SP
315x1540x96
90W
12000 lm
90°
PB120W416B-SP
415x1540x96
120W
16000 lm
90°
415x1540x96
150W
20000 lm
90°
Flux
• Light Distribution
- Beam 90°

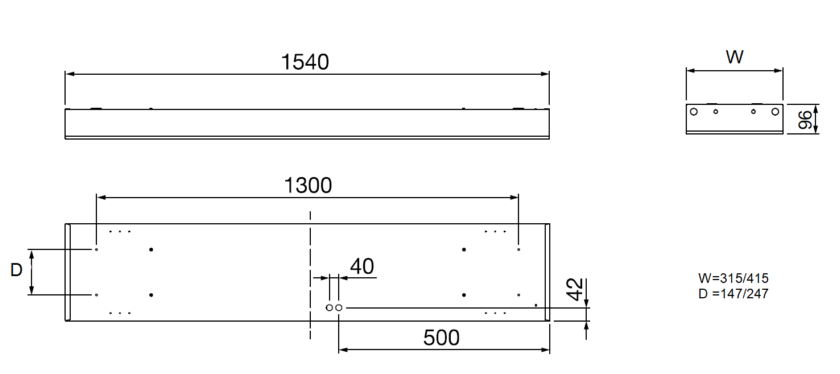

• Dimension

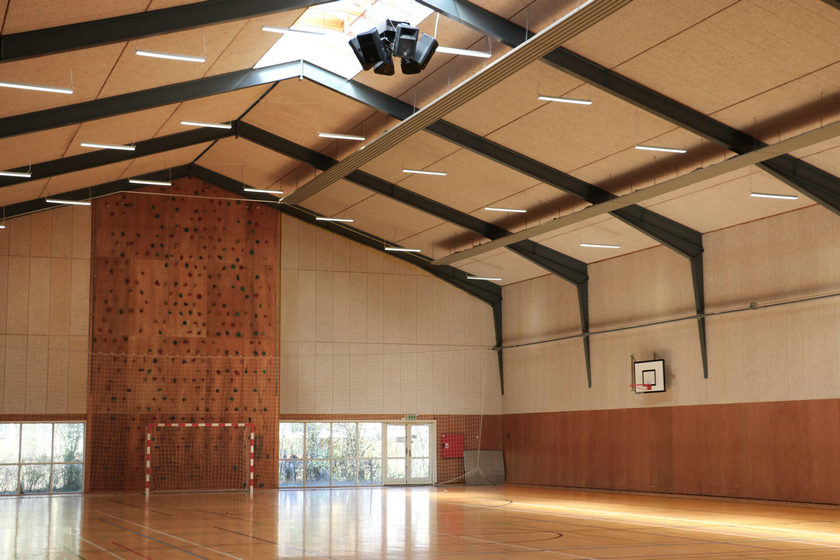

• Project
• Certifications
• Downloads
Cyanlite BOLLO IK10 Sport Light datasheet[1.8Mb]
