  • Cynthia UD Disc
  • Cynthia UD Disc
Cynthia UD DiscCynthia UD Disc

Cynthia UD Disc

  • - One family with uniform aluminum profile and diameter from 40cm to 120cm
  • - Direct and indirect light with help of opalic diffuser and non-yellowing PMMA light guide
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:Cyanlite LED round panel light family for direct and indirect light, in diameter of 40cm, 50cm, 60cm, 80cm, 100cm or 120cm; Disc surface mounted for easy installation.
  • Inquiry

Cyanlite LED round panel light Cynthia UD Disc for direct and indirect light

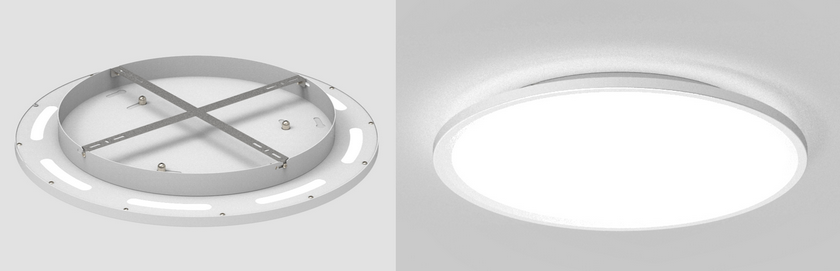

The Cyanlite™ LED round panel light Cynthia UD Disc series is an edge-lit luminaire by disc surface mounted for both direct and indirect light. The mounting bracket and disc enable quick and simple installation on any ceilings including concrete ceiling. The product family adopts same aluminum profile in diameter from 40 cm to 120 cm, enable the space under uniform theme by combining various sizes.

Cyanlite LED round panel light surface mounted direct indirect

Advantages

-          Direct and indirect light for harmonious luminous environment

-          Disc surface mounted for easy installation on any ceilings

-          Freedom to mix and match the luminaires to modern spaces in various sizes, powder coatings, optics, and functions

-          Customization oriented, bespoke sizes are welcome

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   20% upwards and 80% downwards by easy disc surface mounted

l   Standard sizes (cm): D40, D50, D60, D80, D100, D120

l   RAL9016 white as standard, black and other RAL colors available on request

l   Single white and tunable white for Human Centric Light (HCL) optional

l   non-yellowing PMMA light guide; uniform light surface, no light spots, no shadow

l   One-piece foam and all-in package give 360 degree care for simple delivery, security on site, and quick unpacking

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Cyanlite LED round panel light suspended stem mounted surface mounted recessed

Specifications

Model

Product Dimension

Item No.

Luminous Flux

System Power

Efficiency @ 4000K

D40

400*20mm

PR28WD40-UD D

2940lm

28W

105lm/W

D50

500*20mm

PR32WD50-UD D

3360lm

32W

105lm/W

D60

600*20mm

PR40WD60-UD D

4800lm

40W

120lm/W

D80

780*20mm

PR55WD80-UD D

6600lm

55W

120lm/W

D100

1000*20mm

PR75WDH0-UD D

9000lm

75W

120lm/W

D120

1200*20mm

PR85WDH2-UD D

10200lm

85W

120lm/W









- Light Distribution

Cyanlite LED direct indirect round panel surface mounted
Installation

Cyanlite LED round panel light for direct and indirect light surface mounted

Certifications


• Downloads


Cyanlite LED round panel light Cynthia UD Disc datasheet/installation manual/photometric data download
