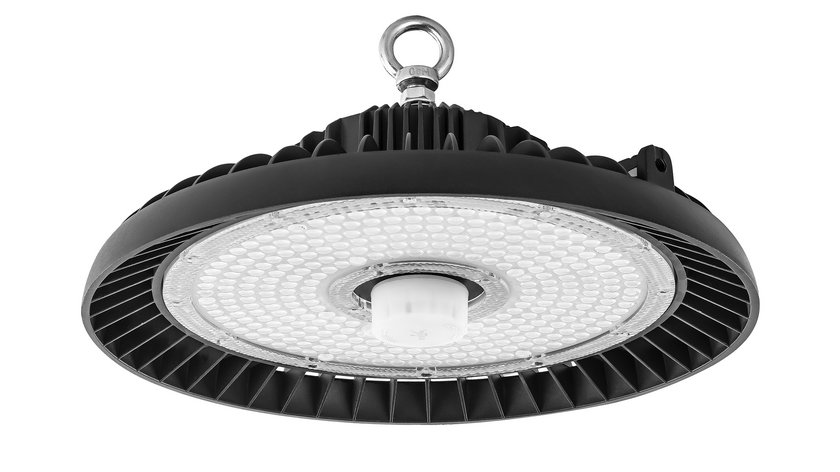

Cyanlite ORIA Power Adjustable LED Highbay

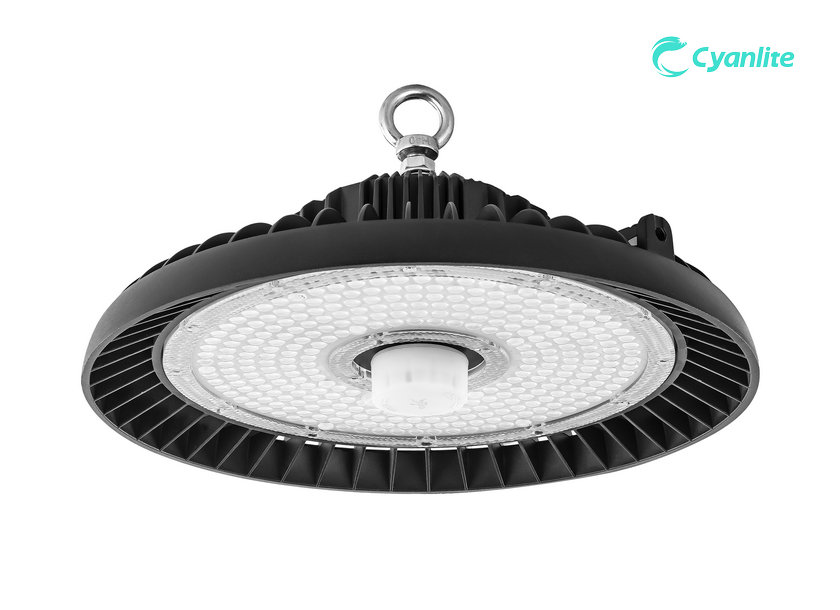

The Cyanlite™ ORIA series is a powerful and high performance LED high bay for large spaces. The Oria is highly robust and efficient LED high bay. Housed in a sleek, robust die-cast aluminum body with polycarbonate lens, the ORIA series is protected to IK08 and IP65 protection class, and particularly suitable for use in work locations exposed to dust, ice, heat and corrosion. ORIA delivers highly efficient, bright light output up to 170lm/W.

Thanks to single point suspension and keyhole mounting makes the installation is simple and easy. Integrable movement sensor as an accessory available. Quick and easy adjustment of the most important parameters by remote control.

• Advantages

-          Highly efficient upto 170lm/W

-          Compact die-cast aluminum body makes the product robust and cost competitive

-          One product with multiple power, 160W as default, 80W/100W/130W/160W power adjustable by DIP switch

-          Easy and fast installation, tool-less installation, saving installation cost

-          Plug and play motion/daylight sensor for environment friendly

• Features

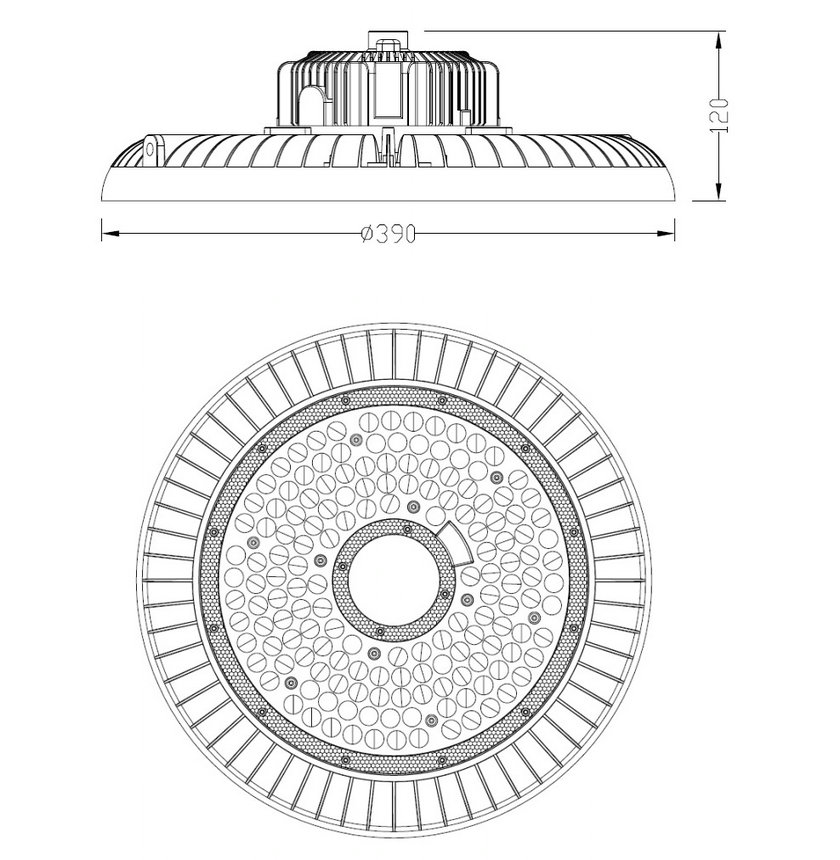

l   Standard sizes (mm): D390mm x H120mm.

l   Black as standard coating color, other colors available on request

l   In accordance with EN 60598-2-24 for use in environments in which a deposit of conductive dust on the luminaire can be expected

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Sensor Ready, and Emergency options available

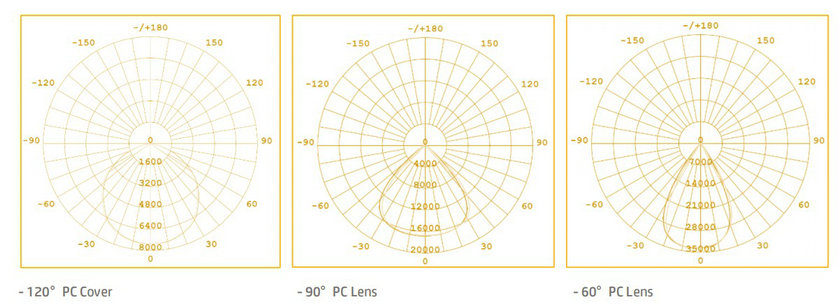

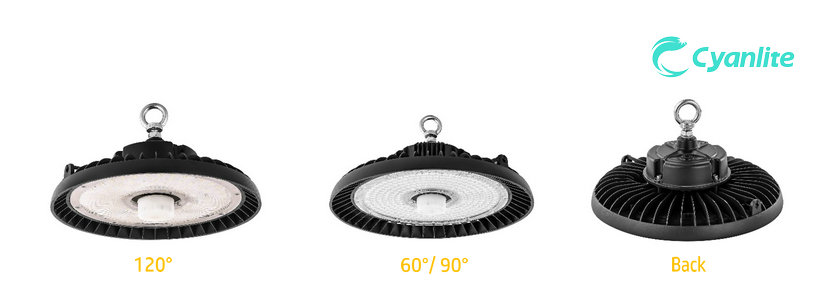

• Optics

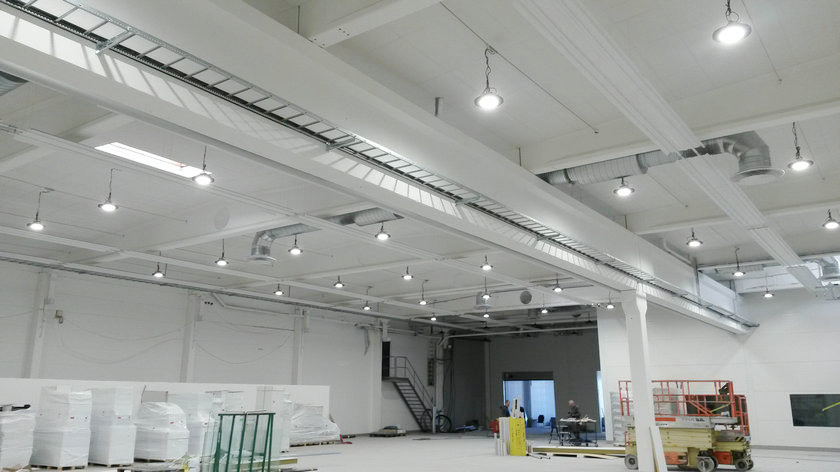

• Applications

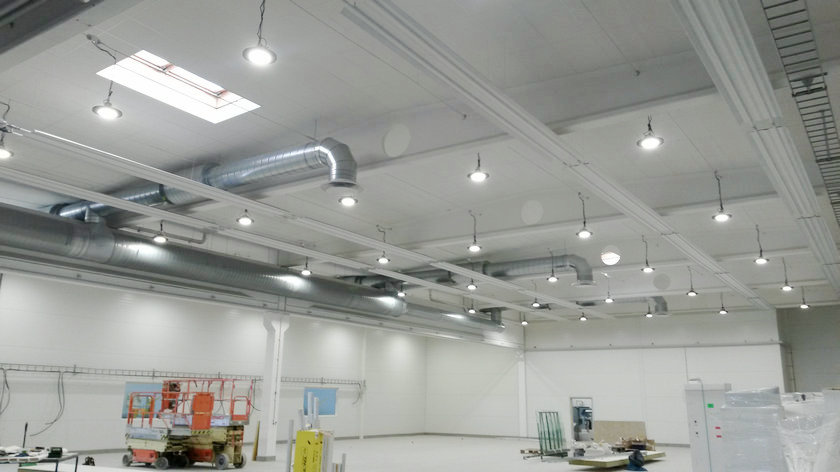

- Factory

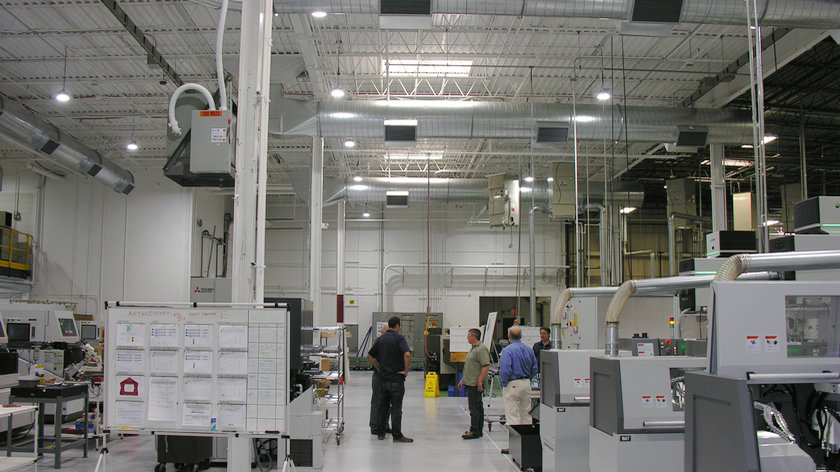

- Production Line

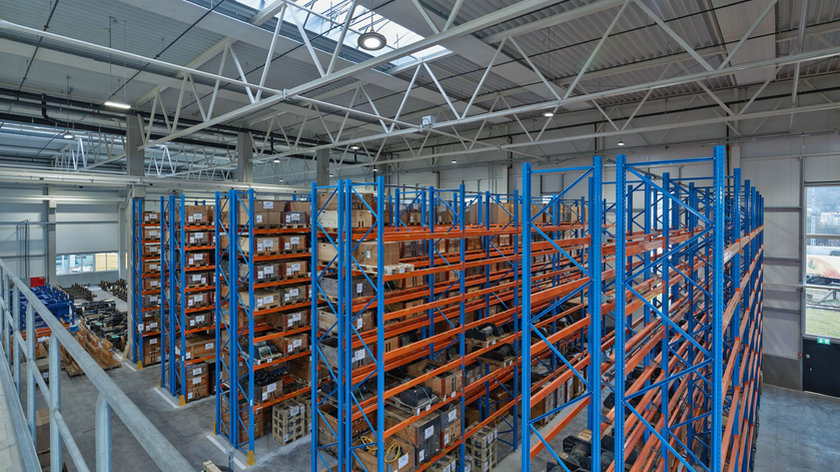

- Warehouse

- Workshop

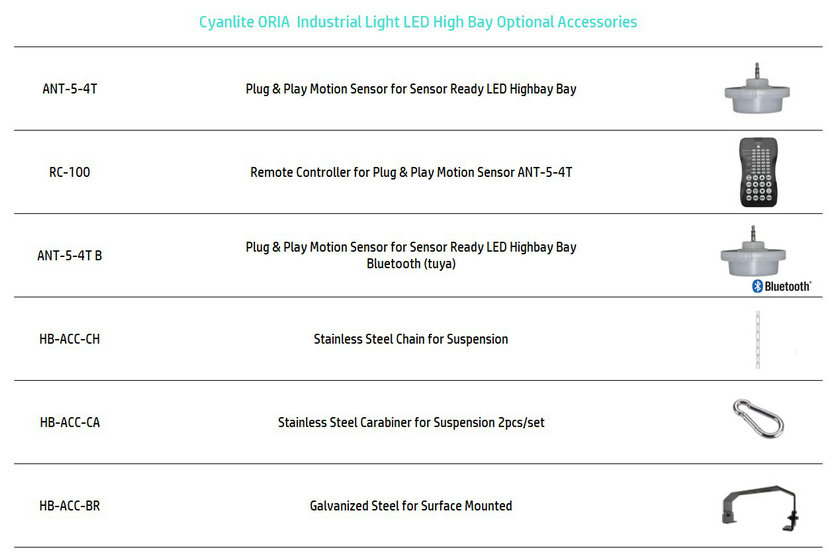

• Optional Accessories

• Specifications

• Dimensions

• Certifications

• Downloads

Cyanlite ORIA LED Highbay datasheet download [1.3 Mb PDF]
