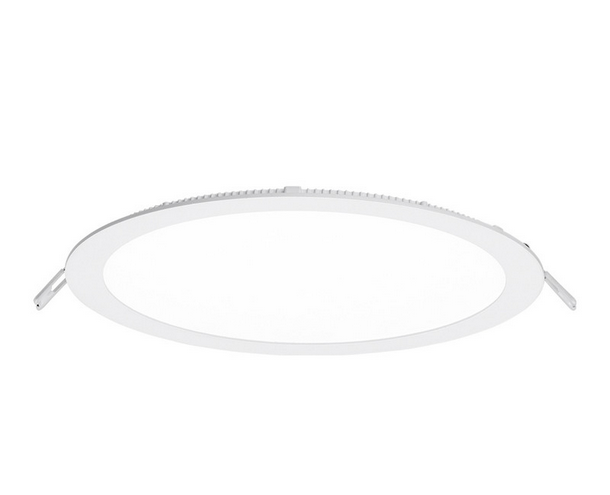

Cyanlite AVIA LED Flat Downlight - 4''/6''/8''/10'' Slim LED Round Panel Light

The Cyanlite™ LED Slim Down Light AVIA series adopt super bright LED as its luminous body, powered by low voltage constant current driver. Aluminum die-casting housing with baking varnish disposal makes it stylish and fashionable with everlasting color.

Excellent thermal management can effectively guarantee the LED's long-term stability. The front panel board is high translucent acrylic, which ensures the light even, soft and high transmittance. Instant start, no flickering, no humming, no hazardous material.

Different from many other similar products in the market, Cyanlite always aim to provide higher level luminaire performance and light quality with 120 lm/w and UGR<19 precise glare control in these small sizes round panel lights.

• Advantages

-          Aluminum housing and PMMA LGP ensures stable quality

-          Freedom to mix and match the luminaires to modern spaces in various sizes, powder coatings, optics, and functions

-          Easy and fast installation, saving installation cost

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

• Features

l   Standard sizes: ⌀145mm (4’’)/ ⌀180mm (6’’)/ ⌀240mm (8’’)/ ⌀300mm (10’’)

l   PRO version 120 lm/w, ECO version 100 lm/w, Opalic and Micro Prismatic diffuser optional

l   RAL9016 white as standard, black and other RAL colors available on request

l   non-yellowing PMMA light guide; uniform light surface, no light spots, no shadow

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

• Specifications

PRO version with 120lm/W

Model	Part No.	Power	Luminous Flux	Dimension (mm)
4’’	PR08WD04P	8W	960 lm	⌀145x12 cut-out: ⌀125
6’’	PR12WD06P	12W	1440 lm	⌀180x12 cut-out: ⌀160
8’’	PR20WD08P	20W	2400 lm	⌀240x12 cut-out: ⌀220
10’’	PR24WD10P	24W	2880 lm	⌀300x12 cut-out: ⌀280

ECO version with 100lm/W

Model	Part No.	Power	Luminous Flux	Dimension (mm)
4’’	PR08WD04	8W	750 lm	⌀145x12 cut-out: ⌀125
6’’	PR12WD06	12W	1200 lm	⌀180x12 cut-out: ⌀160
8’’	PR20WD08	20W	2000 lm	⌀240x12 cut-out: ⌀220
10’’	PR24WD10	24W	2400 lm	⌀300x12 cut-out: ⌀280

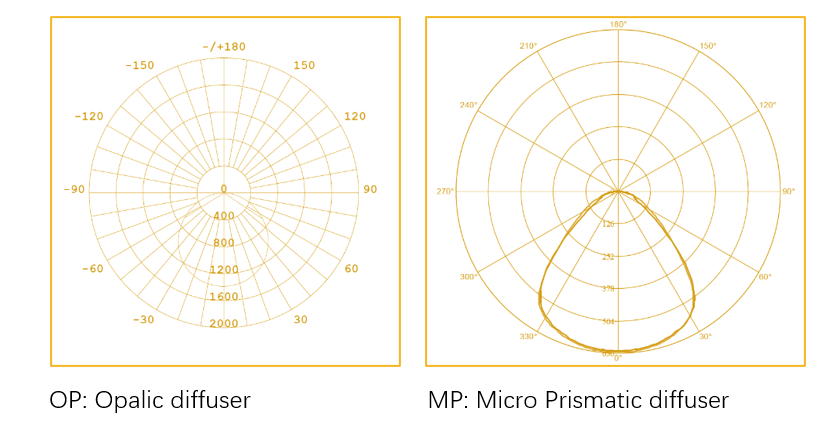

- Light Distribution

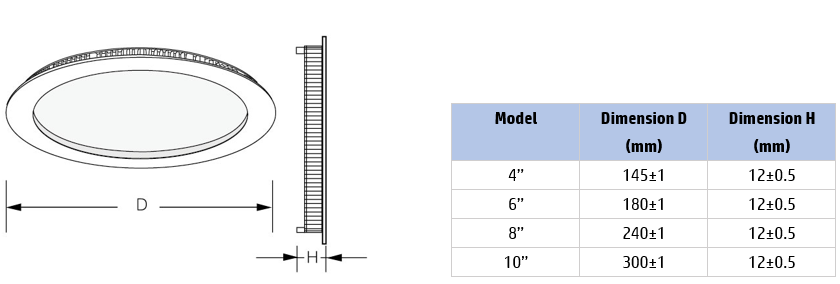

- Dimensions

• Certifications

• Downloads

Cyanlite AVIA LED Flat Downlight Slim Round Panel datasheet/installation manual/photometric data download
