The Cyanlite™ LED round panel light Cynthia Recessed series is an edge-lit luminaire with strong clips. It is suitable for cutout installation on plasterboard ceiling, metal ceiling and etc. The product family adopts same aluminum profile in diameter from 40 cm to 120 cm, enable the space under uniform theme by combining various sizes, finishing, optics.

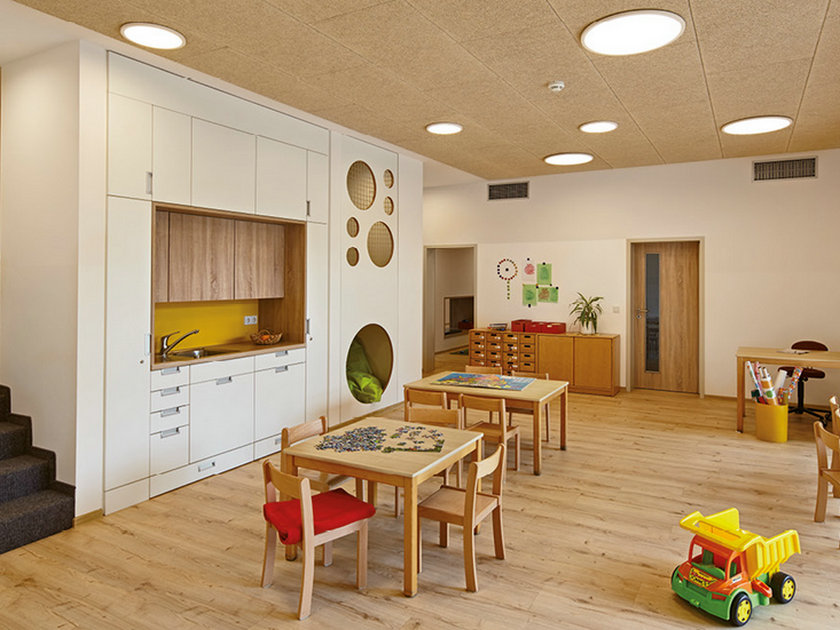

.jpg "LED round panel light recessed installation project")
.jpg "Cynthia LED round panel light project recessed installation project")
• Advantages
- Recessed lighting makes a room feel bigger
- Freedom to mix and match the luminaires to modern spaces in various sizes, powder coatings, optics, and functions
- Customization oriented, bespoke sizes are welcome
- Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership
• Features

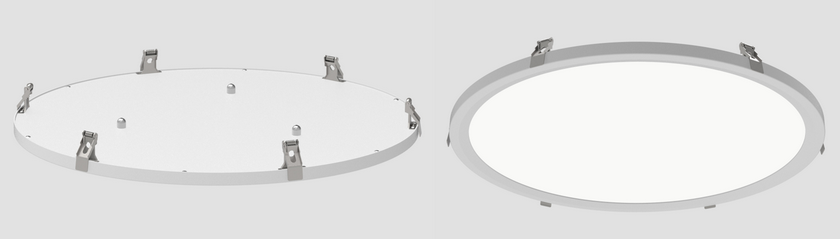

l Strong clips for all panels of the product range
l Standard sizes (cm): D40, D50, D60, D80, D100, D120
l RAL9016 white as standard, black and other RAL colors available on request
l Single white and tunable white for Human Centric Light (HCL) optional
l non-yellowing PMMA light guide; uniform light surface, no light spots, no shadow
l One-piece foam and all-in package give 360 degree care for simple delivery, security on site, and quick unpacking
l Various dimming options, including 0-10V, DALI, Switch Dim etc.
• Specifications
Model
Product Dimension
Item No.
Luminous Flux
System Power
Efficiency @ 4000K
D40
⌀400*20mm
PR28WD40 R
2940lm
28W
105lm/W
D50
⌀500*20mm
PR32WD50 R
3360lm
32W
105lm/W
D60
⌀600*20mm
PR40WD60 R
4800lm
40W
120lm/W
D80
⌀780*20mm
PR55WD80 R
6600lm
55W
120lm/W
D100
⌀1000*20mm
PR75WDH0 R
9000lm
75W
120lm/W
D120
⌀1200*20mm
PR85WDH2 R
10200lm
85W
120lm/W

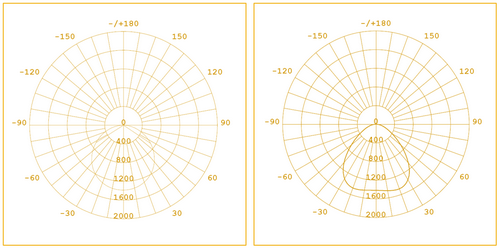

- Light Distribution
• Certifications
• Downloads
