Introducing AVIA+, the ultimate LED circular
light fixture for your lighting needs. Available in four different sizes, with diameters
ranging from 240mm to 500mm, this versatile lighting solution is perfect for a
variety of settings.
AVIA+ boasts an impressive efficiency of up to
120lm/w, making it one of the most energy-efficient options available in the
LED lighting industry. With an IP44 protection rating, these lights are
protected against dust and water splashes, ensuring their longevity even in
harsh environments.
The unique semi-recessed installation of AVIA+ is
designed to emphasize its sleek and modern design, making it an elegant
addition to any space. Whether you're looking to upgrade your office lighting
or outfitting a commercial space, AVIA+ is the perfect choice.
Experience the ultimate in LED lighting technology with AVIA+.
• Specifications
Model |
Diameter |
Cut-Out |
Part No. |
Power |
Lumen |
φ240 |
240 |
φ225 |
PR20WD08P-AP |
20W |
2400 lm |
φ300 |
300 |
φ285 |
PR25WD10P-AP |
25W |
3000 lm |
φ400 |
400 |
φ385 |
PR35WD14P-AP |
35W |
4200 lm |
φ500 |
500 |
φ485 |
PR40WD18P-AP |
40W |
4800 lm |

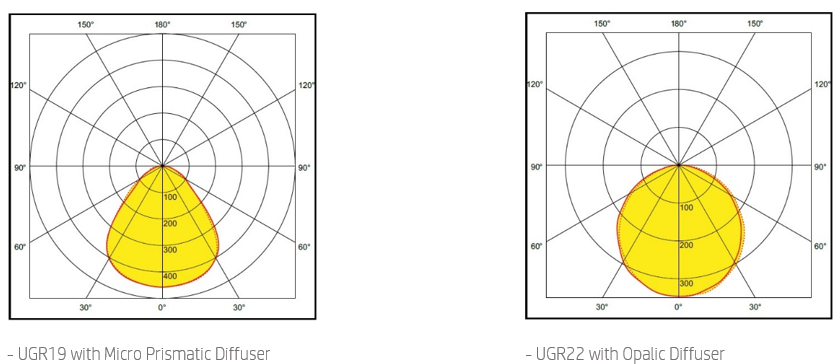

• Light Distribution

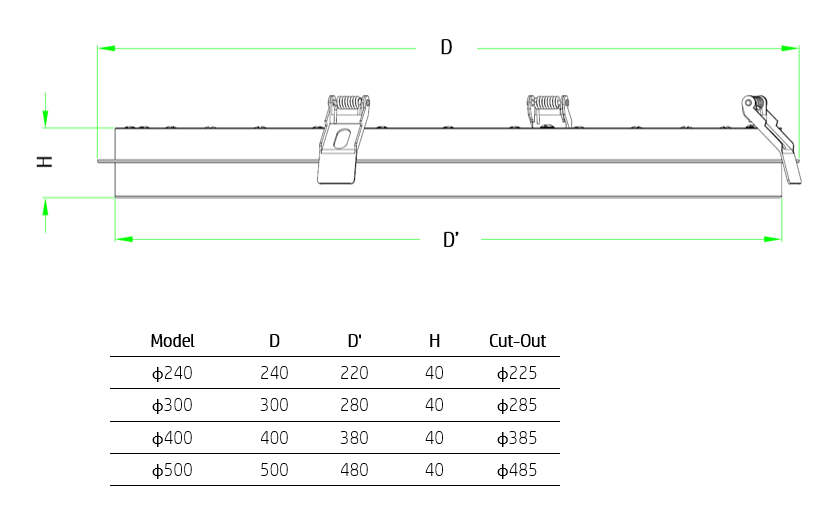

• Dimensions
• Certifications
• Downloads
Cyanlite AVIA+ Semi-Recessed LED Round Panel datasheet/installation manual/photometric data download
• More to Know
Q: what is a semi-recessed led lighting luminaire, and what are the differences with recessed luminaires and surface mounted luminaires?
A: A semi-recessed LED lighting luminaire is a type of light fixture that is partially installed into the ceiling or wall, leaving a portion of the fixture visible. This type of luminaire is designed to provide a sleek and modern look while still providing ample lighting.
In contrast, recessed luminaires are fully installed into the ceiling or wall, leaving no visible portion of the fixture. This type of luminaire is often used to create a seamless look in a space, as the fixture itself is hidden from view.
Surface mounted luminaires, on the other hand, are installed directly onto the surface of the ceiling or wall. Unlike recessed or semi-recessed luminaires, these fixtures are fully visible and can be used to add a decorative element to a space.
While all three types of luminaires can be used for similar lighting applications, the choice between them often comes down to personal preference and the specific needs of the space. Semi-recessed luminaires, for example, may be preferred in spaces where a sleek and modern look is desired, while surface mounted luminaires may be preferred in spaces where a more decorative look is desired.
