Backlite for Lay-On ceiling

Cyanlite Backlite LED panel lights for Lay-On ceilings

The Cyanlite™ LED backlite LED panel light is a solution for T15/T24 Lay-On ceiling in standard sizes and has perfect counterpoise of LPW and price, i.e. 125lm/W and 100lm/W optional. It is supplied with non-yellowing PMMA lens, nano coated back plate in shape of square for stiffness. More functions are available already, such as integrated with Philips occupancy sensing, daylight harvesting and task tuning, controlled with Android smartphone App; COI<3.3 compliant for medical lighting; tunable white from 3000K to 6000K for Human Centric Lighting; and RGBW for decorative lighting.

• Advantages

-          Backlight technology for high efficiency

-          Non-yellowing PMMA lens and Flicker Free driver as standard

-          Exceptional quality consistency thanks to fully assembled by machines

-          Easy and fast installation, tool-less installation, saving installation cost

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

• Features

l   Standard sizes (mm): 600x600, 625x625, 300x1200, 600x1200

l   RAL9016 white as standard, other RAL colors available on request

l   System Efficiency upto 120 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

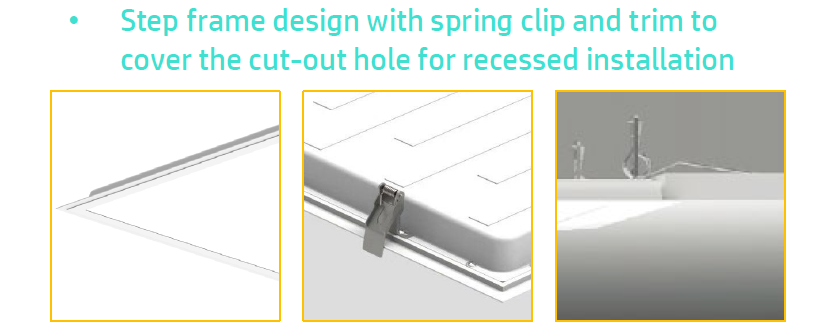

• Suspended with pendant ropes or recessed with clips for cutout installation, except recessed in Lay-On ceilings

Universal Design for both T15/T24 Lay-On ceiling and Plaster board cut-out ceiling with step frame, one product- two installations.

• Specifications

Model	Dimension	Product No.	Power	Luminous Flux	Efficiency @ 4000K
600 x 600	595 x 595 x 30mm	PB30W060P	30W	3750lm	125lm/W
		PB35W060P	35W	4375lm	125lm/W
		PB40W060E	40W	4000lm	100lm/W
625 x 625	620 x 620 x 30mm	PB30W062P	30W	3750lm	125lm/W
		PB35W062P	35W	4375lm	125lm/W
		PB40W062E	40W	4000lm	100lm/W
300 x 1200	295 x 1195 x 30mm	PB30W312P	30W	3750lm	125lm/W
		PB35W312P	35W	4375lm	125lm/W
		PB40W312E	40W	4000lm	100lm/W
600 x 1200	595 x 1195 x 30mm	PB45W612P	45W	5625lm	125lm/W
		PB60W612E	60W	6000lm	100lm/W

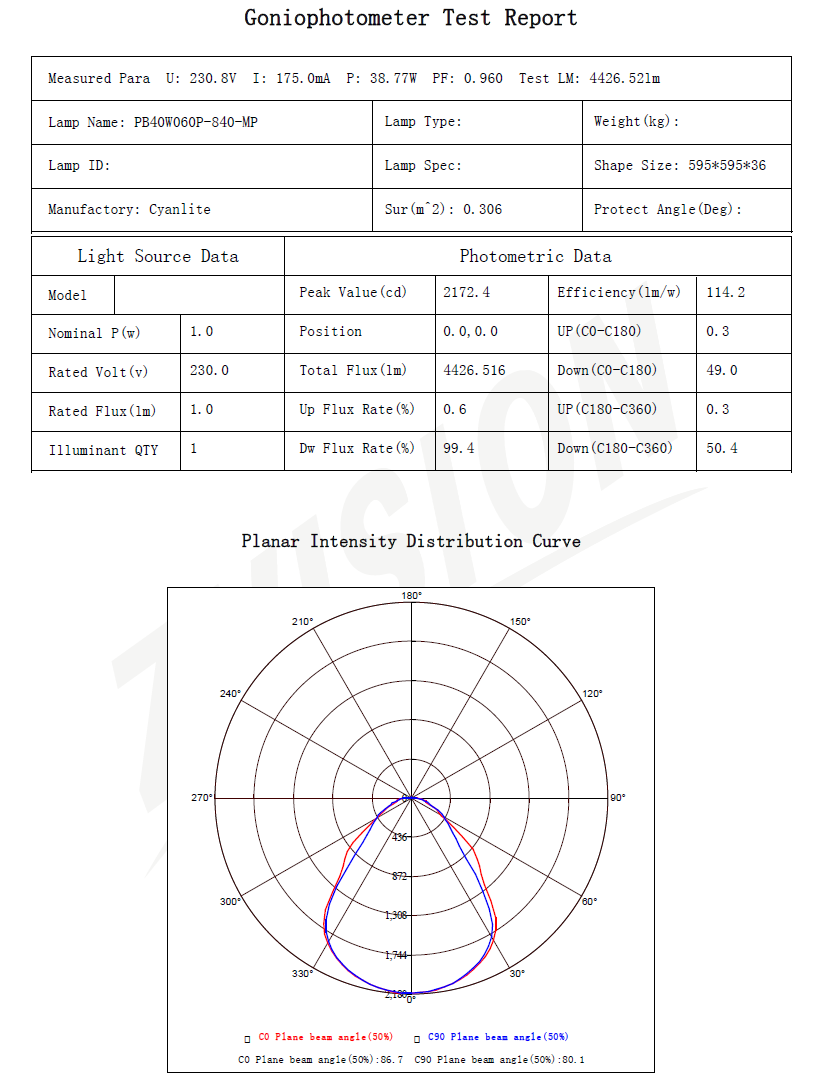

- Light Distribution

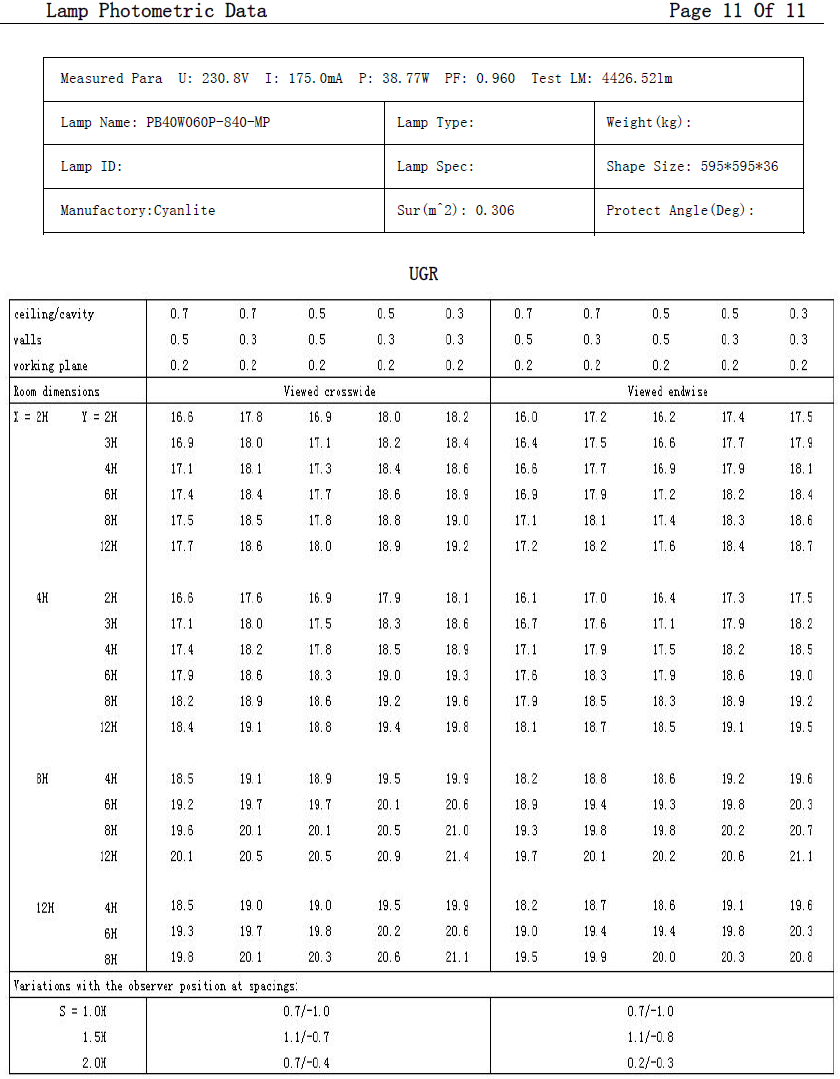

- UGR22 with Opalic diffuser                                          - UGR19 with Micro Prismatic diffuser

Upto 4400lm and UGR<19

• Certifications

• Downloads

Cyanlite Backlite LED panel light for Lay-On ceiling datasheet/installation manual/photometric data download

Cyanlite LED panel light selection guide[3.9 Mb PDF]
