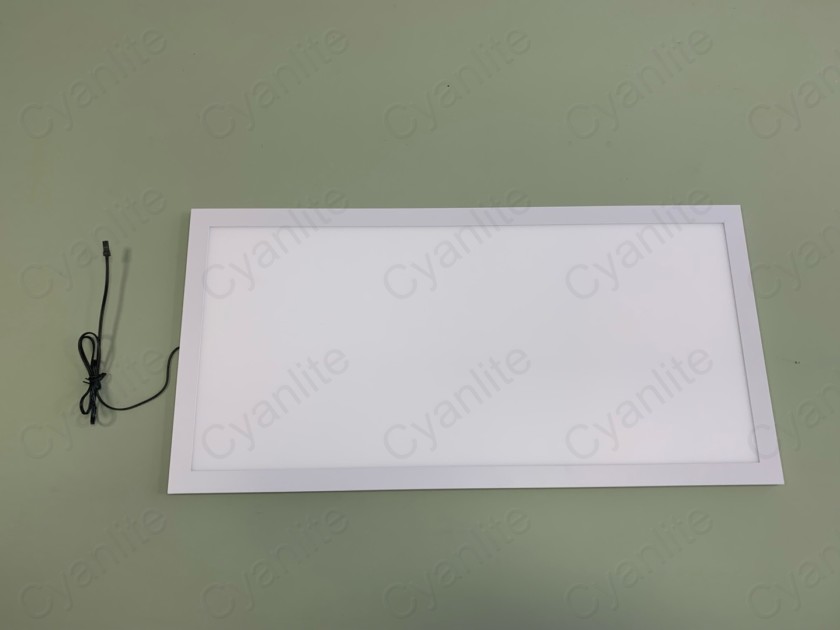

The Cyanlite™ LED panel lights 12V/24V/48V DC Series are specially designed and perfect solutions for vehicle interior lighting, solar lighting system, general room and other low working voltage applications. The panel light adopts super bright LEDs, supplied with high energy efficiency. It is powered by low constant voltage driver, instant start. The aluminum frame is stylish and fashionable, and with excellent thermal management. The LED luminaire is with even light, soft and high transmittance. UGR<19 is optional, providing comfortable, anti-glare and healthy lighting for people within the space.
• Advantages

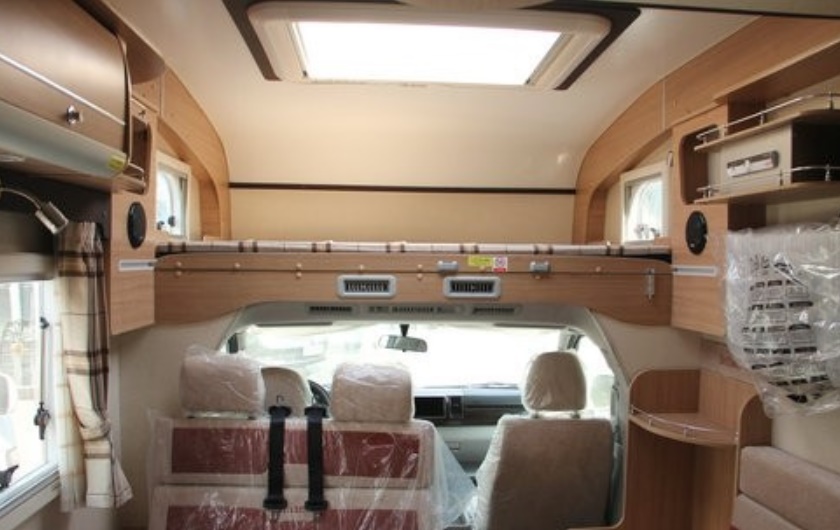

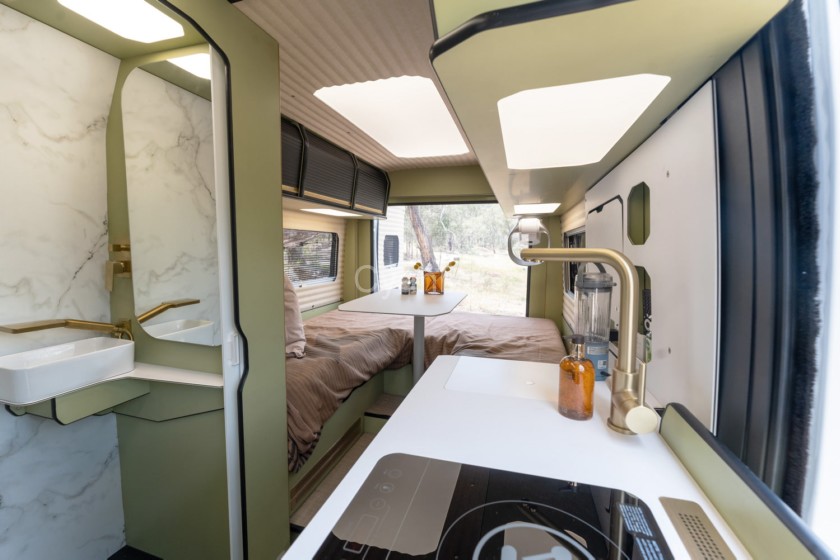

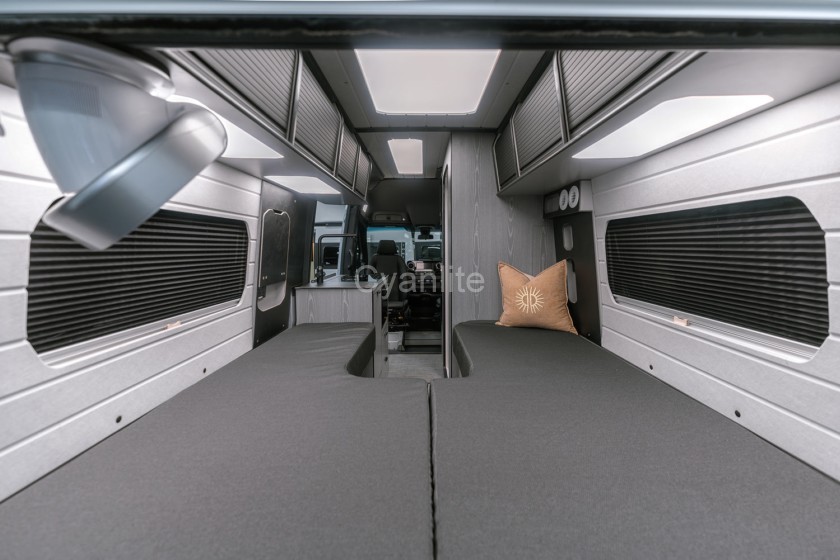

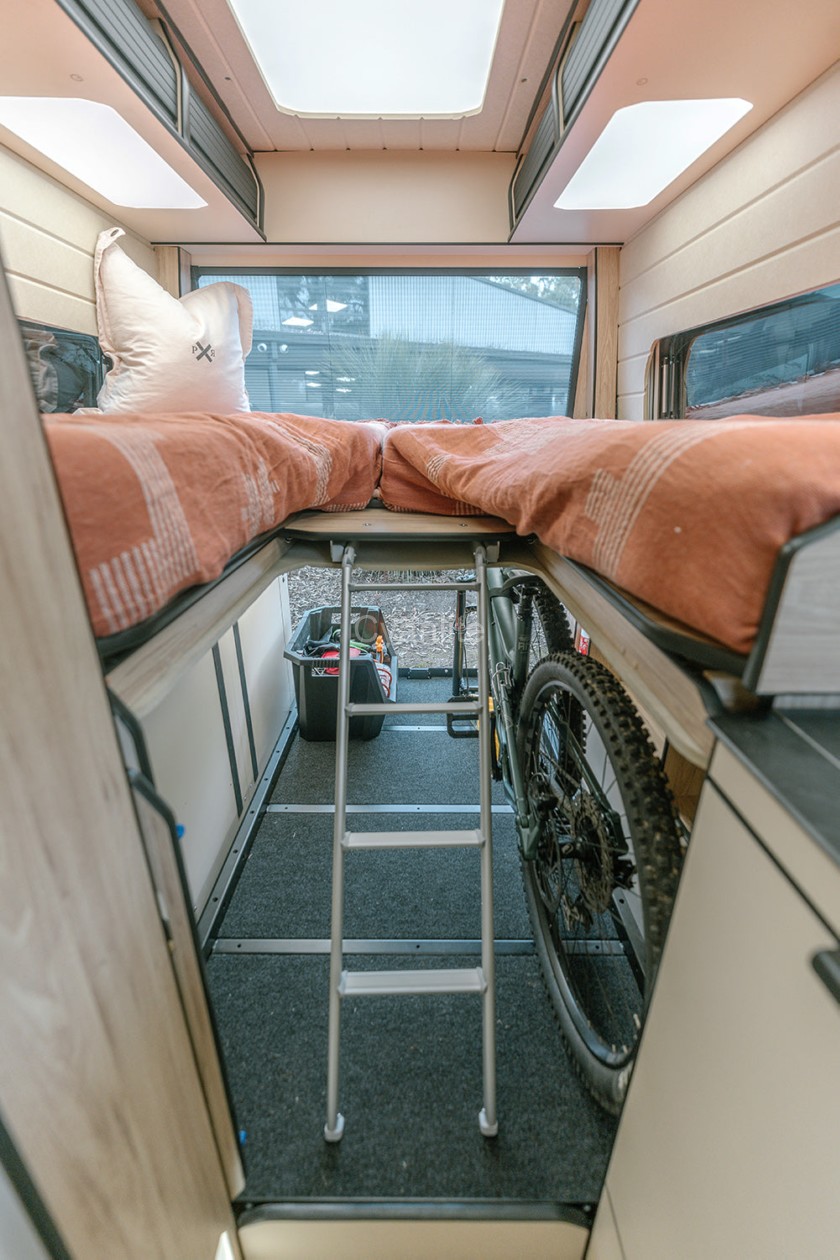

- Specifically designed for vehicle interior lighting, solar lighting system, boat, marine and other low voltage applications.
- Stylish and classy design
- Uniform lighting, eyes friendly
- Flexible and customization oriented, bespoke sizes are welcome
- Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership
• Features
l Standard sizes (mm): 300x300, 300x600, 600x600, 625x625, 300x1200
l RAL9016 as standard, other RAL colors available on request
l System Efficiency upto 100 lm/W
l EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser
l Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K
l 5 Years Warranty
l Various dimming options, including 0-10V, DALI, Switch Dim etc.
• Specifications
Model |
Product No. |
Dimension(mm) |
Luminous Flux |
System Power |
300x300 |
PS12W030-xyyzz |
295x295 |
1200 lm |
12 W |
300x600 |
PS20W306-xyyzz |
295x595 |
2000 lm |
20 W |
300x1200 |
PS40W312-xyyzz |
295x1195 |
4000 lm |
40 W |
600x600 |
PS40W060-xyyzz |
595x595 |
4000 lm |
40 W |
625x625 |
PS40W062-xyyzz |
620x620 |
4000 lm |
40 W |
*x stands for CRI( Ra), >80, *x=8
*yy standrs for Color Temp, 3000K/3500K/4000K/5000K//6000K, *yy=30/35/40/50/60
*zz stands for Working Voltage, DC 12V/24V/48V *zz =12/24/48
- Light Distribution
- UGR22 with Opalic diffuser - UGR19 with Micro Prismatic diffuser
• Certifications
• Downloads
Cyanlite LED Panel light 12V/24V/48V DC datasheet/installation manual/photometric data download
