Up/Down LED Panel Light VIBES

- Direct and indirect light with opalic diffuser and non-yellowing PMMA light guide
- 130lm/W, available light panel length 1.2m, 1.5m, and 1.8m
- 5 Years Warranty; CE, RoHS2.0, REACH approval
Product description：Cyanlite LED panel Vibes UD family for direct and indirect light by suspended installation, 130lm/W, available length 1.2m, 1.5m and 1.8m, non-yellowing PMMA LGP.
Inquiry

Cyanlite direct and indirect light LED panel Vibes UD

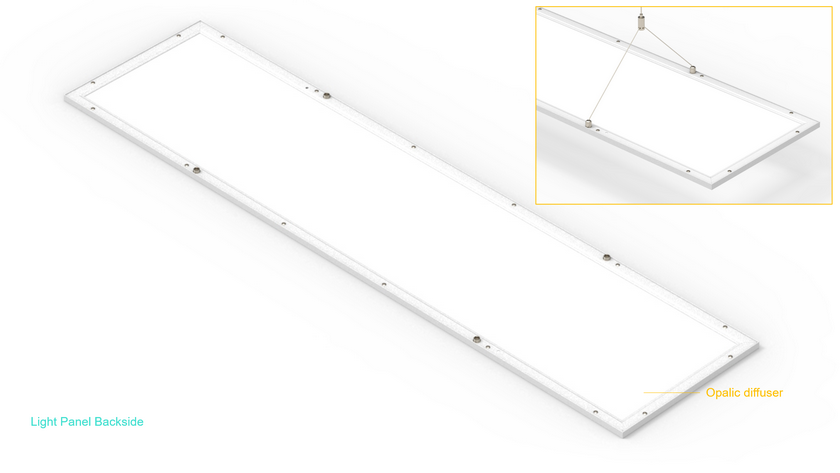

The Cyanlite™ direct and indirect light LED panel Vibes UD series is an edge-lit luminaire for both direct and indirect light. Thanks to opalic diffuser and non-yellowing PMMA LGP, light distribution achieves 70% downwards and 30% upwards, so that there is competent luminous intensity on workplane and harmonious light to the ceiling. Suspended mounting as a single or continuous line luminaire is possible. Exquisite design via driver in the canopy and tidy wires.

Cyanlite LED direct and indirect panel light Vibes

• Advantages

- Direct and indirect light for harmonious luminous environment

- Suspended luminaire with diverse applications

- Driver in the canopy and tidy wires for a classy appearance

- Customization oriented, bespoke sizes are welcome

- Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

• Features

l 30% upwards and 70% downwards with opalic and micro prismatic optional

l Standard sizes (mm): 300x1200, 250x1200, 250x1500, 250x1800

l RAL9016 white as standard, other RAL colors available on request

l System Efficiency upto 130lm/W

l EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l 5 Years Warranty

l Various dimming options, including 0-10V, DALI, Switch Dim etc.

l Emergency options available

• Specifications

Model	Part No.	Power	Luminous Flux	Dimension	Efficiency @ 4000K
300x1200	PS30W312P-xyyUD	30W	1170lm↑2730lm↓	295x1195x15 mm	130lm/W
250x1200	PS30W212P-xyyUD	30W	1170lm↑2730lm↓	245x1195x15 mm	130lm/W
250x1500	PS40W215P-xyyUD	40W	1560lm↑3640lm↓	245x1495x15 mm	130lm/W
250x1800	PS45W218P-xyyUD	45W	1755lm↑4095lm↓	245x1795x15 mm	130lm/W
