Cyanlite Installation Frame Accessories for LED Panel Light

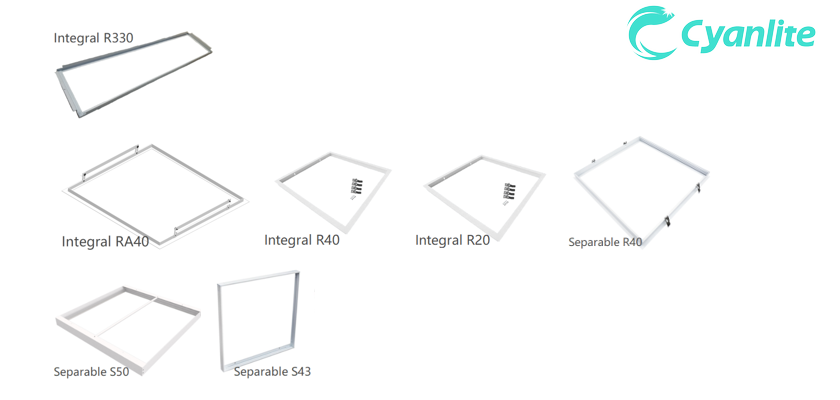

Cyanlite takes great pride in creating time for our customers through offering total solutions with a wide range of compatible frames for installing LED panel lights in different ceilings like parallel metal ceiling, gypsum ceiling, and concrete ceiling and wall. Integral frame ensures simple installation and robust structure. Separable frame is a specific solution for easy shipping and storing. High quality powder-coated aluminum frame ensures longevity and durability while maintaining impressive aesthetics.

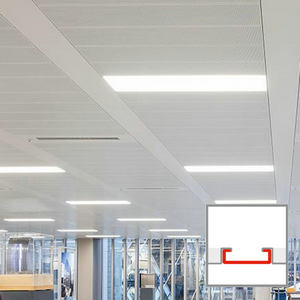

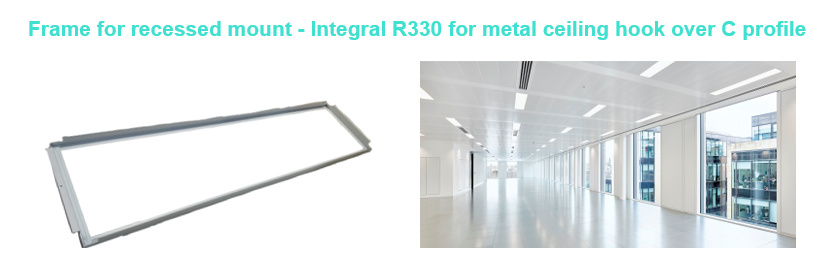

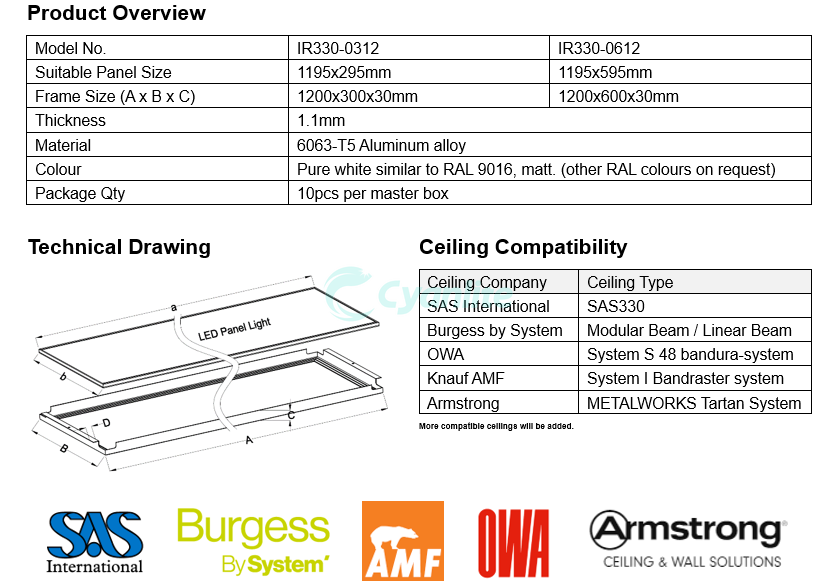

Cyanlite integral R330 frame is designed for metal ceiling with hook-over C profile (SAS330). The frame enables simple installation of LED panel light to the metal ceiling system. It can easily be laid on the C profiles by hand providing quick and simple access to the ceiling void, with no need for specialist tools. The combination of the frame and standard LED panel light provides a perfect solution for commercial environments. The frame is supplied with square edge; in 1200mm length, widths 300mm or 600mm. Bespoke sizes are available on request. It can be used for office, meeting room, hospital, school, laboratory, commercial kitchen, corridors, and rooms with parallel metal ceiling system.

Rather than use additional SAS330 frame accessory with normal LED panel light, we recommend use Cyanlite HO330 series LED panel lights, which is specially designed for SAS330 Hook-Over metal ceiling system.

Click to know more:

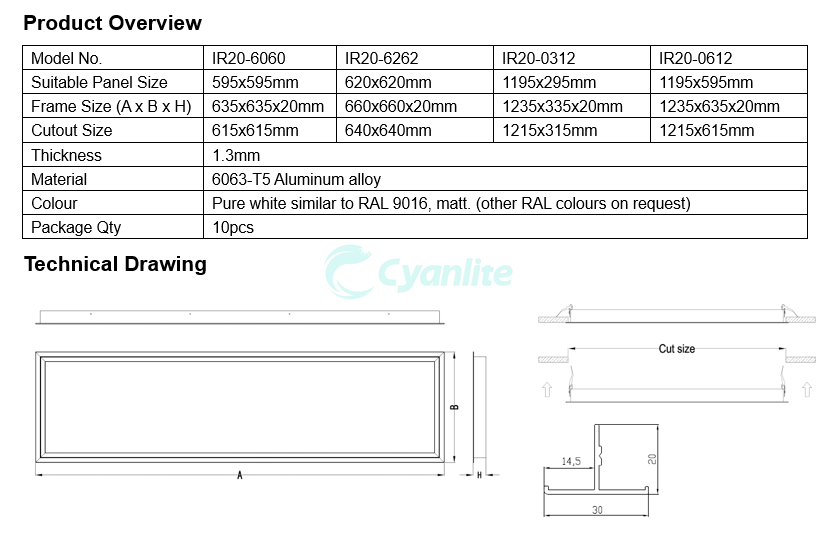

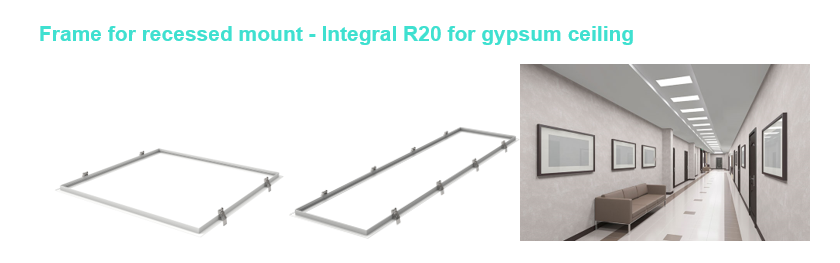

Cyanlite integral R20 frame is designed for panel light need recessing in gypsum ceiling. The height of the frame is 20mm, that is an economical solution for the product itself and for transportation. The aluminum frames are welded for a robust structure and no gap on the surface. The frame enables LED panel light a wide range of applications with gypsum ceiling for professional lighting. The frame is supplied for square panel light 600x600mm and 620x620mm and rectangular 1200x300mm and 1200x600mm. Bespoke sizes are available on request. It can be used for office, meeting room, hospital, school, laboratory, corridors, and rooms with gypsum board ceiling.

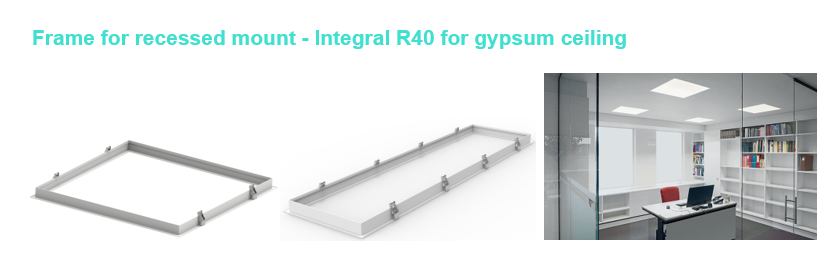

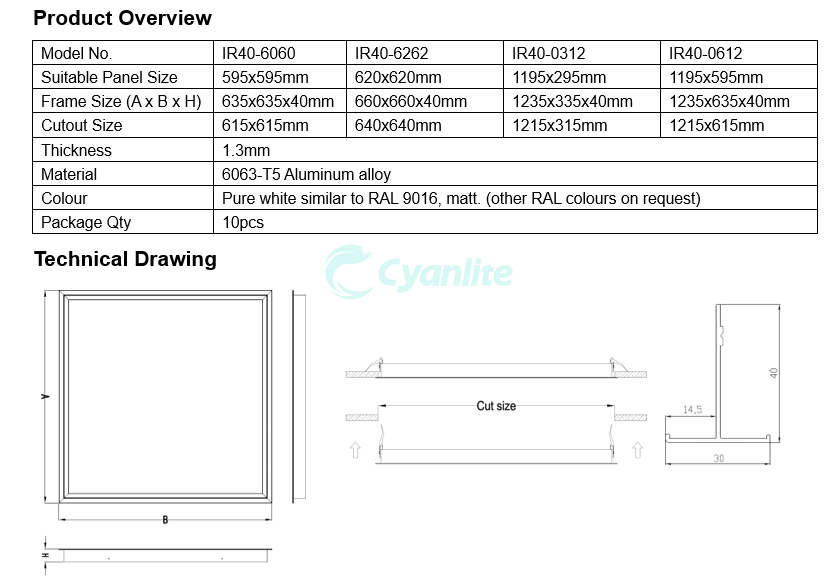

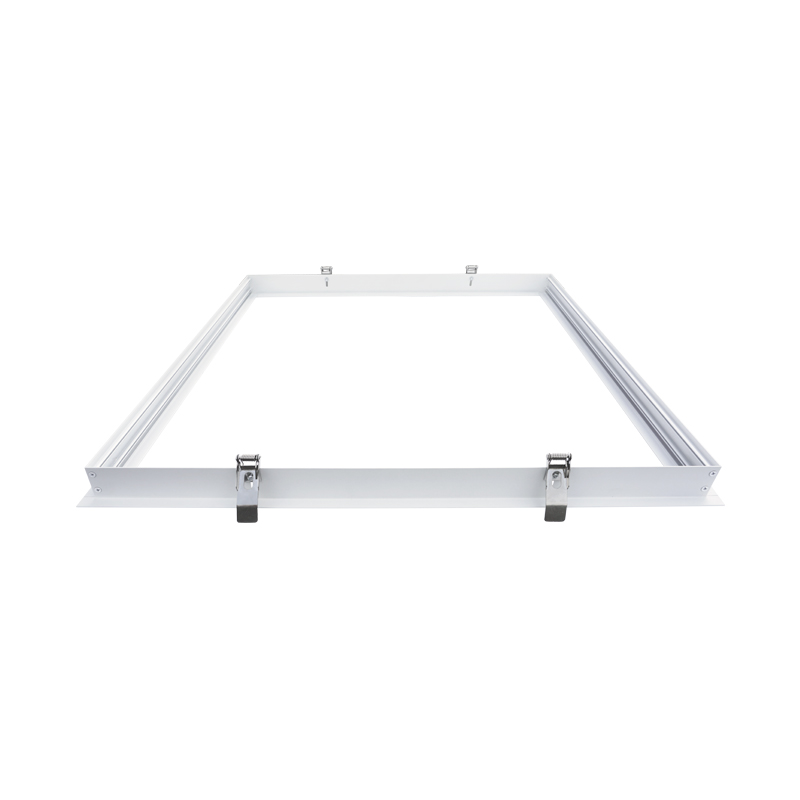

Cyanlite integral R40 frame is designed for panel light need recessing in gypsum ceiling. The height of the frame is 40mm, that assures the frame has a premium structure. The aluminum frames are welded for a robust structure and no gap on the surface. The frame enables LED panel light a wide range of applications with gypsum ceiling for professional lighting. The frame is supplied for square panel light 600x600mm and 620x620mm and rectangular 1200x300mm and 1200x600mm. Bespoke sizes are available on request. It can be used for office, meeting room, hospital, school, laboratory, corridors, and rooms with gypsum board ceiling.

Cyanlite also have complete luminaires designed for Gypsum board/ Plaster board cut-out recessed installations, compared with using an additional recessed frame accessory, that luminaire offers more competitive price, easier installation and simpler stock management.

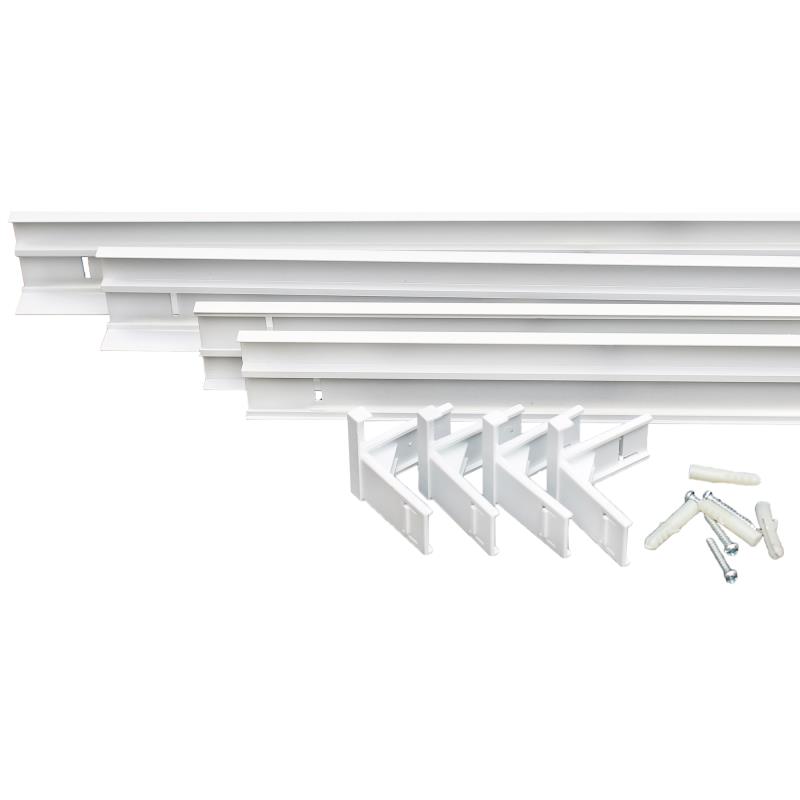

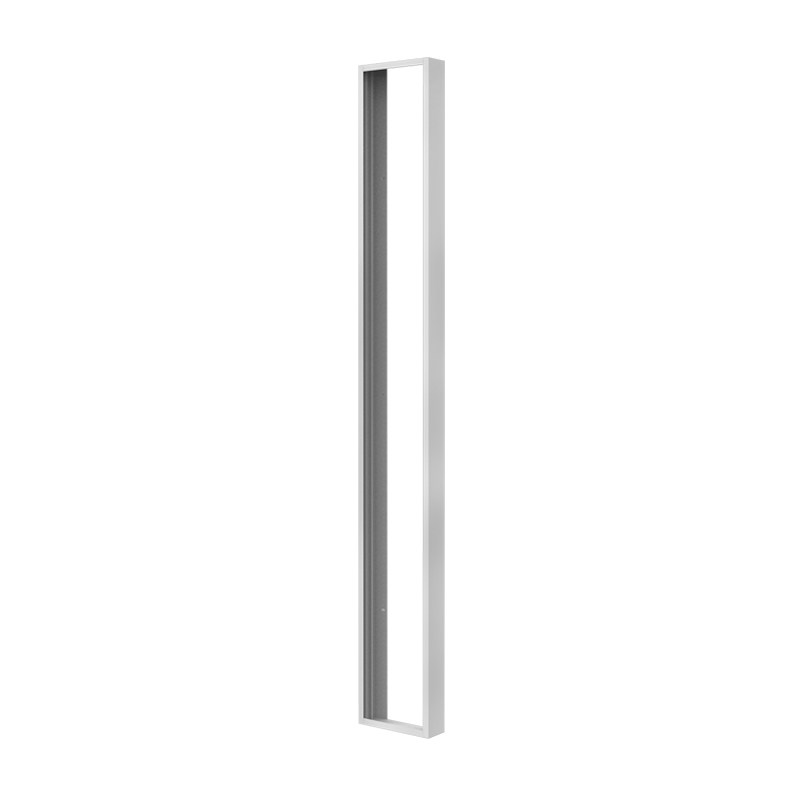

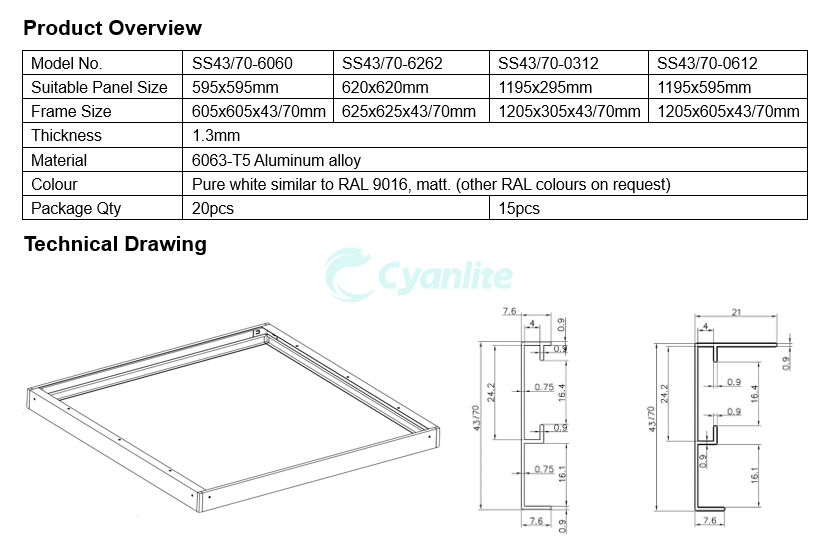

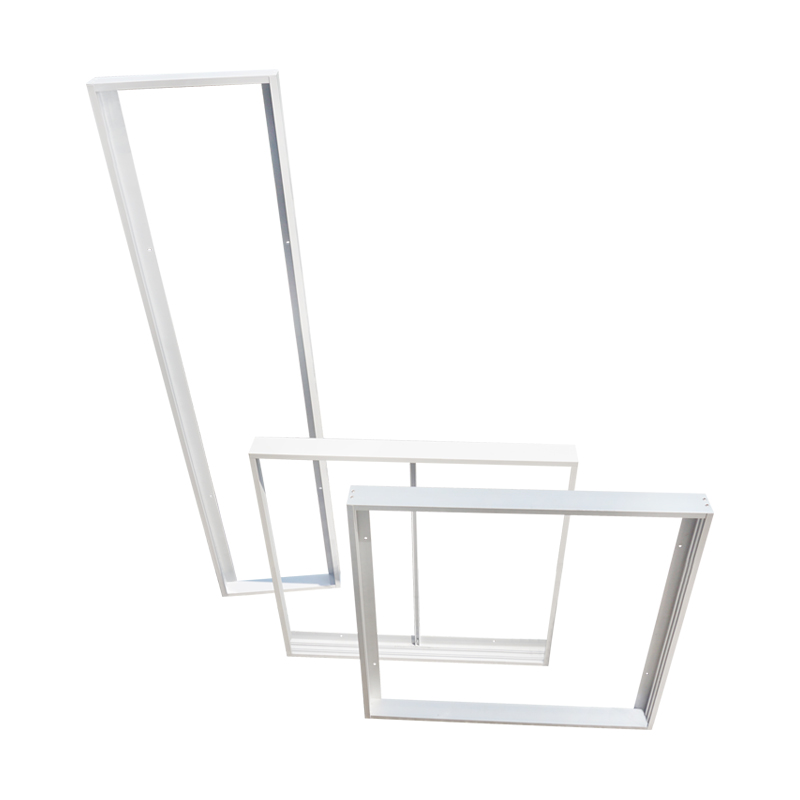

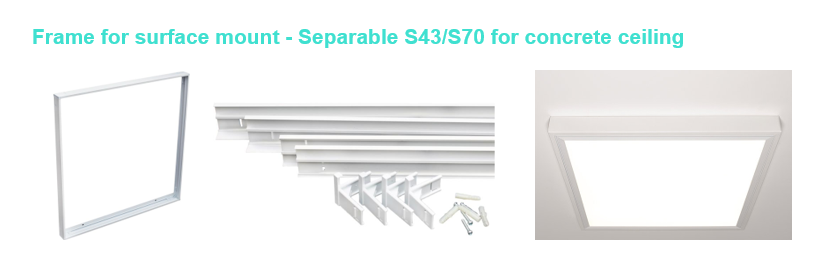

Cyanlite separable S43/S70 frame is designed for panel light need installing on concrete ceiling. The four frame bars are separable and can be assembled with 4 plastic corners by hand. The compact structure benefits you easy packing, shipping and storing. The frame enables LED panel light a wide range of applications with drywall ceiling for professional lighting. The frame is supplied for square panel light 600x600mm and 620x620mm and rectangular 1200x300mm and 1200x600mm. Bespoke sizes are available on request. It can be used for office, meeting room, hospital, school, laboratory, corridors, and rooms with concrete ceiling.

Also, Cyanlite recommend you use specially designed Surface Mounted Luminaire SAGITTA and LIBRA directly, rather than use surface mounted frame plus a normal panel light, as it will be more price competitive, easier installation and better appearance. check more details here:

Downloads

Cyanlite Installation Frame Accessories Datasheet download

More Downloads:

Cyanlite LED panel lights for Metal Ceiling brochure[4.2 Mb PDF]

Cyanlite LED panel light selection guide[3.9 Mb PDF]

Cyanlite is so experienced with all kinds of ceiling systems and brands, please contact us now if you need more detailed information or any lighting solution for your projects.

EMAIL our ceiling expert to get more detailed info
