MONA D

- LED desktop luminaire with uniform light panel
- UGR<18, 100lm/W, 50% direct and 50% indirect, touch dimming
- 5 Years Warranty; CE, RoHS2.0, REACH approval
Product description：Cyanlite LED desktop luminaire MONA D, UGR<18, direct and indirect light distribution, integrated PIR presence sensor and daylight sensor optional, touch dimming synchronous control
Inquiry

Cyanlite LED desktop luminaire MONA D

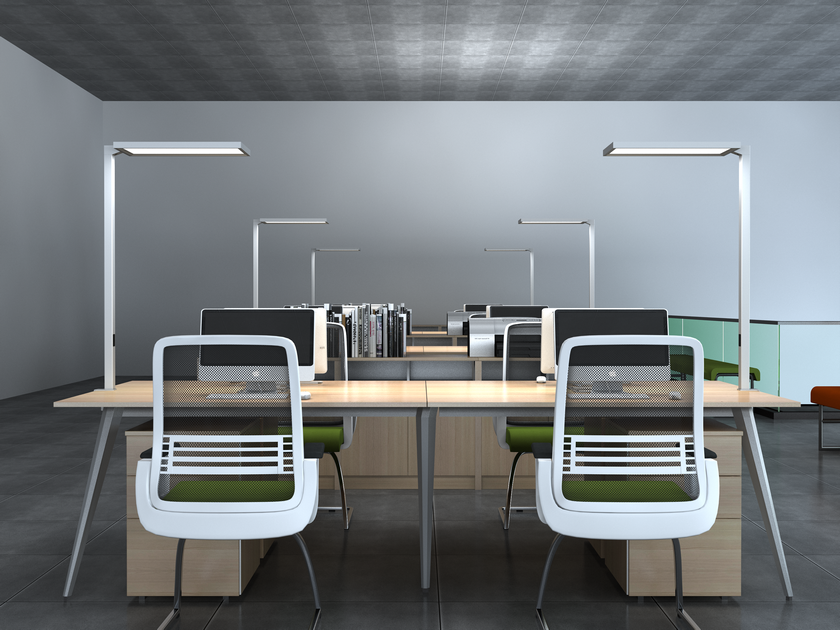

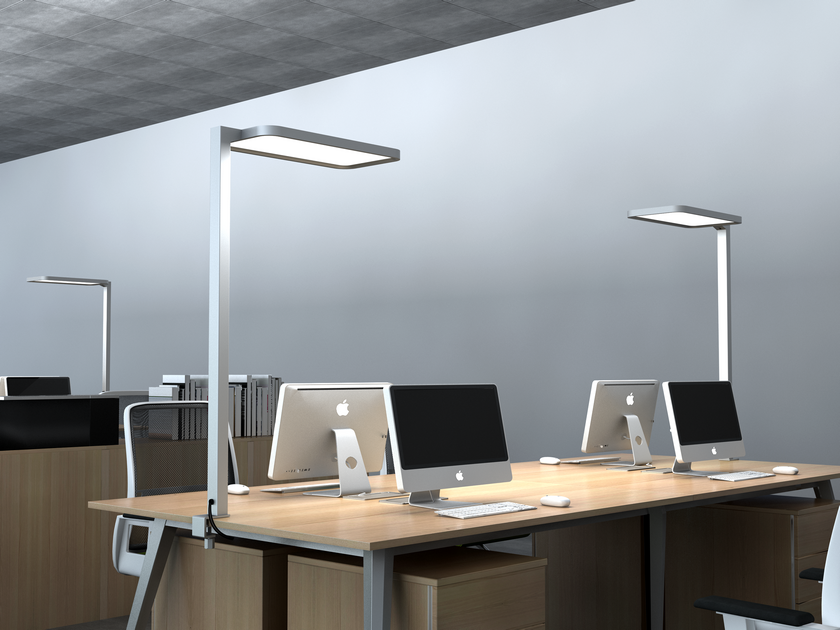

The Cyanlite™ LED desktop luminaire MONA D is of edge-lit technology for one 1*2m working plane with flat luminaire head. As a desktop luminaire, it is suitable for all types of fixed and height-adjustable desks. Thanks to exquisite combination of non-yellowing PMMA LGP, smooth micro prismatic and opalic diffuser, the luminaire is of 50% direct and 50% indirect light emission. Electrical connection via 2.5m connection cable and plug. With integrated PIR presence sensor and daylight sensor for constant illuminance in the luminaire surroundings when the luminaire is switched on and for natural light incidence.

Cyanlite LED free standing luminaire MONA D

• Advantages

- Modern office environment for fixed and height-adjustable desks

- Easy and fast installation, saving installation cost

- Touch dimming and optional integrated PIR presence sensor and daylight sensor with the benefit of saving electricity

- Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

• Features

l 100lm/W, 50% direct and 50% indirect, 60W and 80W available

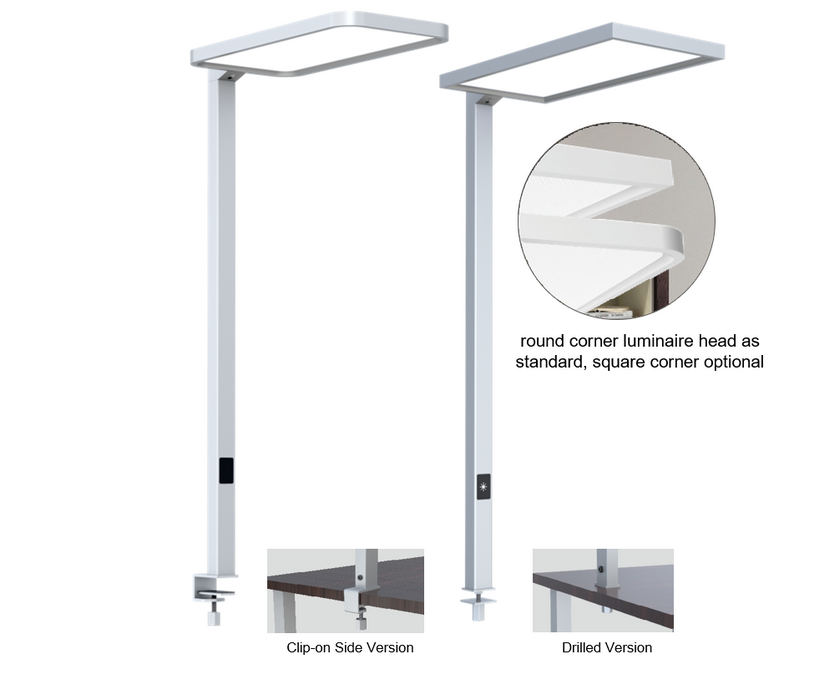

l Standard table clamp for fixing to the edge of desk surface, drilled mounting kit optional

l Touch dimming synchronous control

l non-yellowing PMMA light guide and prismatic diffuser for uniform light surface

l RAL9016 white as standard, black, silver and other RAL colors available on request

l Integrated PIR presence sensor and daylight sensor optional

• Specifications

Function	Product Dimension	Item No.	Luminous Flux	System Power	Efficiency @ 4000K
Touch Dim	692 x 310 x 1200mm	FS60WDM	3000lm↑/3000lm↓	60W (30W↑/30W↓)	100lm/W
Touch Dim	692 x 310 x 1200mm	FS80WDM	4000lm↑/4000lm↓	80W (40W↑/40W↓)	100lm/W
Touch Dim Motion Sensor	692 x 310 x 1200mm	FS60WDM-M	3000lm↑/3000lm↓	60W (30W↑/30W↓)	100lm/W
Touch Dim Motion Sensor	692 x 310 x 1200mm	FS80WDM-M	4000lm↑/4000lm↓	80W (40W↑/40W↓)	100lm/W
Touch Dim Motion Sensor Daylight Sensor	692 x 310 x 1200mm	FS60WDM-D	3000lm↑/3000lm↓	60W (30W↑/30W↓)	100lm/W
Touch Dim Motion Sensor Daylight Sensor	692 x 310 x 1200mm	FS80WDM-D	4000lm↑/4000lm↓	80W (40W↑/40W↓)	100lm/W
