Timo UGR16

Product Item : Timo UGR16
- Beam angle 60°, UGR<16
- All patterns are possible; Seamless Connection.
- 5 Years Warranty; CE, RoHS2.0, REACH approval
Product description：The Cyanlite™ LED T grid linear light - Timo, is designed for T15/T24 T bars. No need to modify or change anything on orgininal T-bar or ceilings, Timo is fixed to the original T bar easily and fast.
Inquiry

Cyanlite LED T grid linear light Timo BR 60D model UGR<16

The Cyanlite™ LED T grid linear TIMO series has been designed specifically for T15/T24 T bars. The installation is very simple, no need to modify or change anything on orgininal T-bar or ceilings; the connection is very easy, Timo is driven by 24V DC safe low voltage, so one driver can power up multiple Timo models, and this makes the wiring and connection job much easier for installer. Thanks to our unique circuit design, upto 10pcs (6 meters) Timo linear lights can be linked together without voltage drop or brightness unconformity. The architects and customers can use their imagination to get any pattern they want on the ceiling, all patterns are possible and there is no limit.

• Advantages

- Specifically designed for surface mounted installation on T15/T24 T bars/T grids

- One driver to power multiple light models, loop-in/loop-out design, extremely easy for wiring

- Easy and fast installation, no need to modify anything on orginal T bar/T grid and ceilings

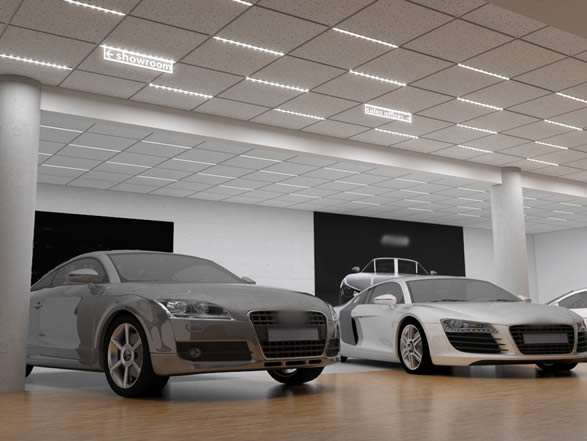

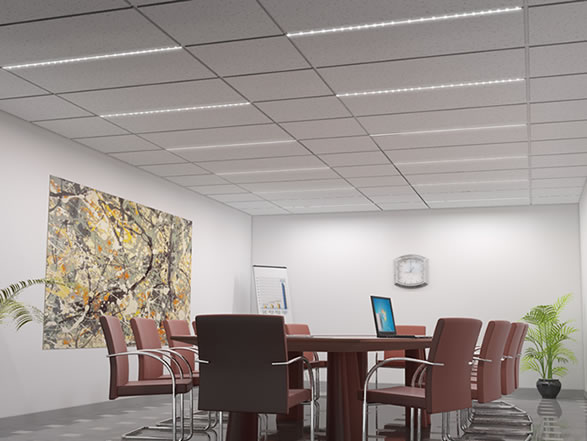

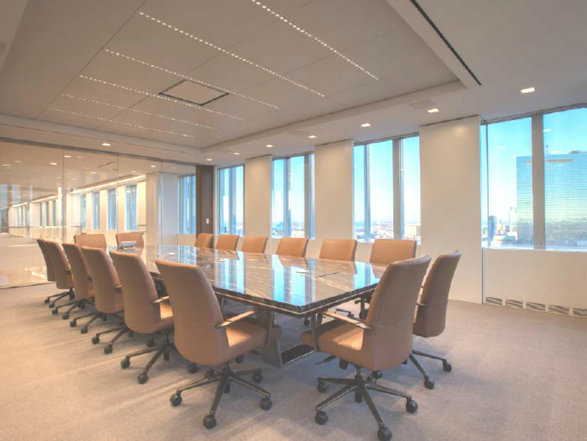

- Flexible and customization oriented, all grid patterns are possible, no limit from primary runner/ main bar

- Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

• Features

l Standard sizes (mm): 600, 625, 1200, 1250

l RAL9016 as standard coating colors, other RAL colors available on request

l System Efficiency upto 120 lm/W

l EN 12464-1& LG7 Compliant, UGR<16 and UGR<19 Optional

l Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l 5 Years Warranty

l Various dimming options, including 0-10V, DALI, Switch Dim etc.

l Emergency options available

• Dimensions

• Specifications

According to EN12464-1 design standard, UGR16 is required for many applications, Cyanlite TIMO BR 60D model can achieve UGR<16 and meet those requirements perfectly.

Model	Part Number	Dimension (mm)	Power (W)	Lumen Output	Beam
	TB15W060TBR	600x26x20	15	1500 lm	60°
	TB15W062TBR	625x26x20	15	1500 lm	60°
	TB30W120TBR	1200x26x20	30	3000 lm	60°
	TB30W125TBR	1250x26x20	30	3000 lm	60°
