The Cyanlite™ Novelty LED architectural panel lights Nova series are
designed for high-end premium projects, especially for clients who are looking

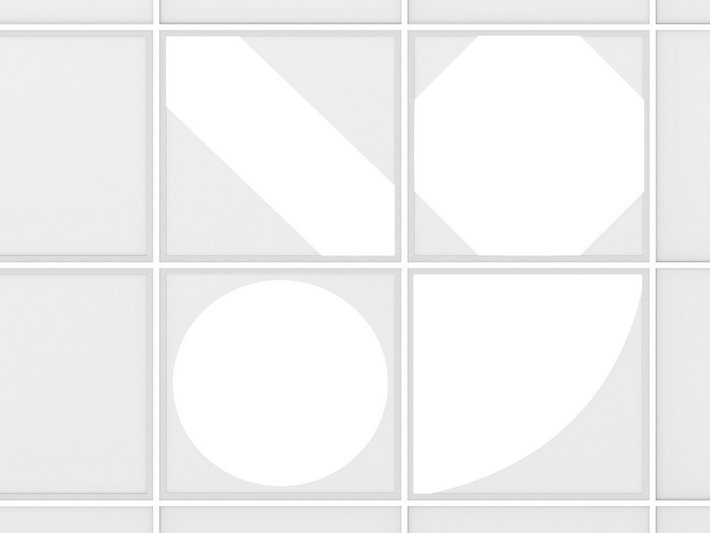

for differentiation. Inside the square panel, it comes with 4 luminous shapes,
round, fan-shaped, diagonal and octagon. This fully allows clients to choose
and assemble patterns to their preferences. Adopting the benefit of LED
Backlite technology, this luminaire has no light guide inside, no worry about
yellowish problem compared with edge lit panel light. The aluminum frame is
stylish and fashionable, stable, and with excellent thermal management. It
could directly fit into the Lay-On ceiling systems perfectly, no need for extra
accessories. Flicker free, on off as
standard; 1-10V and DALI dimming are optional. A good product for office,
hospital, school, shop, and other open planed location.
Advantages
- Different and stylish, freedom to create patterns as clients wants.
- No light guide, no yellowish problem.
- Needs no additional installation accessories, saving material cost
- Easy and fast installation, no additional job for screws or adjustment, saving installation cost
- A wide product range for all major standard Lay-on ceiling tile sizes
- Flexible and customization oriented, bespoke sizes are welcome
- Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership
Features
l Standard sizes (mm): 600x600, 625x625
l RAL9016 as standard, other RAL colors available on request
l EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser
l Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K
l 5 Years Warranty
l Various dimming options, including 0-10V, DALI, Switch Dim etc.
l Emergency options available
Specifications
Model |
Part No. |
Power |
Luminous |
Dimension |
|
600x600 |
PB40W060E-N4 |
40 W |
3200 lm |
595x595x30 |
|
625x625 |
PB40W062E-N4 |
40 W |
3200 lm |
620x620x30 |
• Certifications
• Downloads
Cyanlite LED architectural lighting NOVA datasheet/installation manual/photometric data download
