Home > Products > Lighting for Specialty Application > HCL Humen Centric Light

  • Cyanlite Tunable White HCL LED Panel Light
  • Cyanlite Tunable White HCL LED Panel Light
  • Cyanlite Tunable White HCL LED Panel Light
  • Cyanlite Tunable White HCL LED Panel Light
Cyanlite Tunable White HCL LED Panel LightCyanlite Tunable White HCL LED Panel LightCyanlite Tunable White HCL LED Panel LightCyanlite Tunable White HCL LED Panel Light

Cyanlite Tunable White HCL LED Panel Light

  • -HCL (Human Centric Lighting) Tunable White
  • - 2700K~6500K CCT via DALI2, Casambi, Tuya, Zigbee, WIFI etc.,
  • - LED backlight technology, EN 12464-1& LG7 Compliant, UGR<19 Optional
  • - 5 Years Warranty; CE, RoHS2.0, REACH approval
  • Product description:Cyanlite HCL Backlite LED panel for Lay-On ceiling, non-yellowing lens & FF driver. Providing clients the right light at the right time. 2700K~6500K CCT via DALI2, Casambi, Tuya etc.,
  • Inquiry

Cyanlite Tunable White HCL Backlite LED Panel Lights

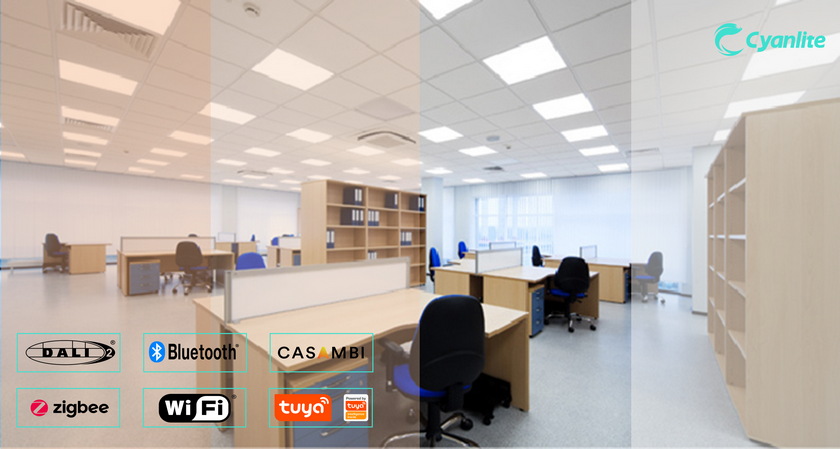

human centric lighting tunable white

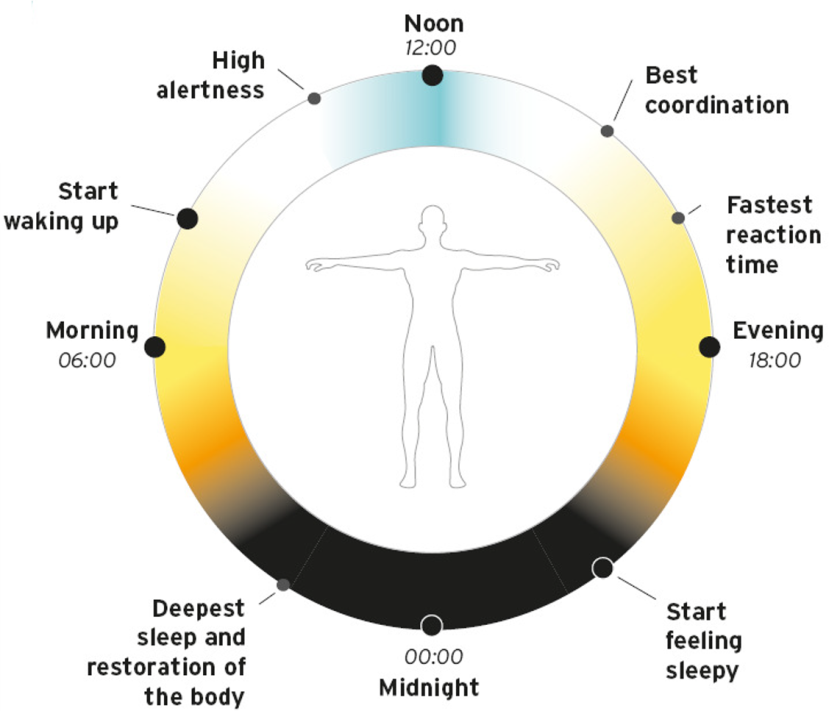

Human Circadian Rhythm


Humans are affected by light not only on a visual level but also on a biological one, which was normally called "inner clock" or circadian rhythm. Mankind has evolved under natural light for millions of years, We rise with the sun and go to sleep when it sets. With the use of electricity, the world seems to never sleep. We spend a lot of time indoors, where we use artificial light. And there is a disconnect between natural and artificial light with regards to intensity, color, and dynamics of light, poor circadian entrainment. This may bring to us some bad effects like headaches, neck or back pains, general fatigue, fatigue in the eye muscles, sleep & alertness problems, disturbance of the hormone system, compromised mood, functioning, well-being, and health…..

Natural Rythem

What about we use artificial light to imitate natural light. This is where HCL (Human Centric Lighting) has come to place. HCL is a way of bringing the natural changes of light intensity and color temperature indoors by using artificial light in order to imitate natural light. HCL puts humans in the center when developing lighting systems, providing optimized work and living environments.

Cyanlite LED backlite panel light

The Cyanlite™ HCL LED backlite LED panel light conbines the benifit of HCL and backlite technology. It is a solution that could befinit humans for better perfomrance, sleep. health and wellbeing and could fit T15/T24 Lay-On ceiling in standard sizes.  It comes with 2 versions of LPW, i.e. 125lm/W and 100lm/W optional and supplied with non-yellowing lens, nano coated back plate in shape of square for stiffness.The aluminum frame is stylish and fashionable, stable, and with excellent thermal management.

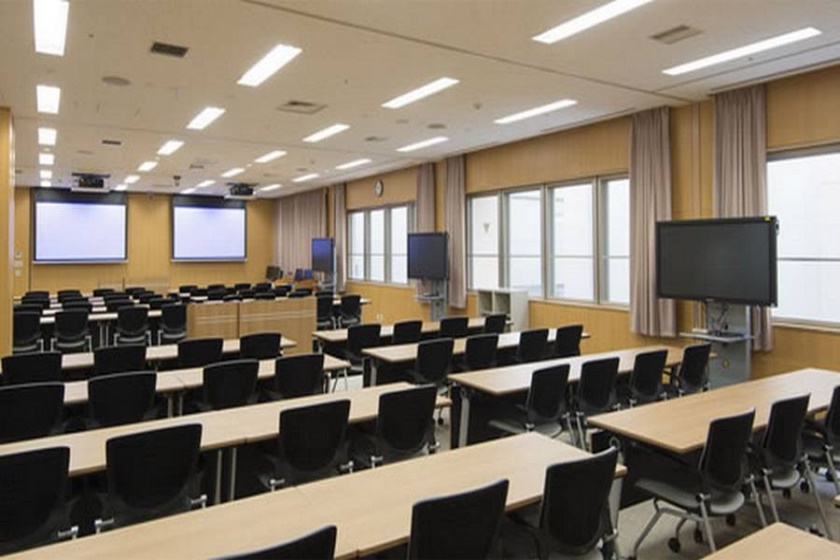

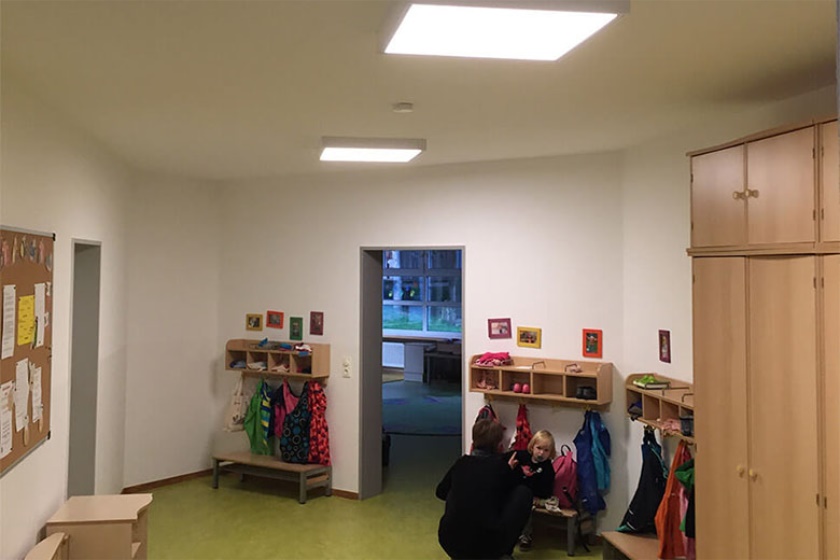

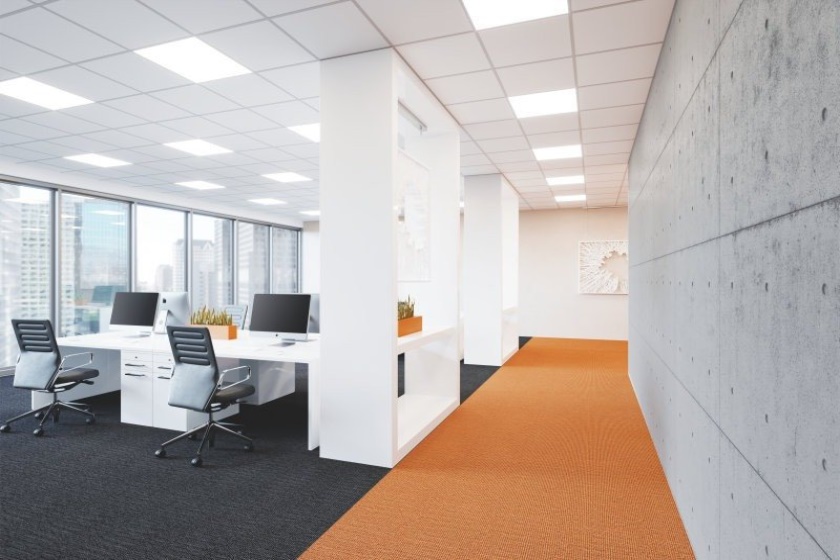

Applications

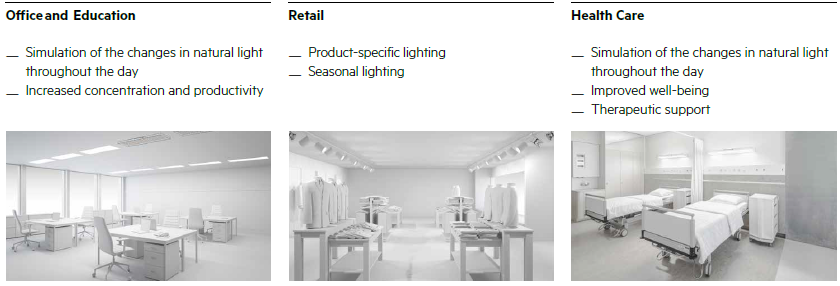

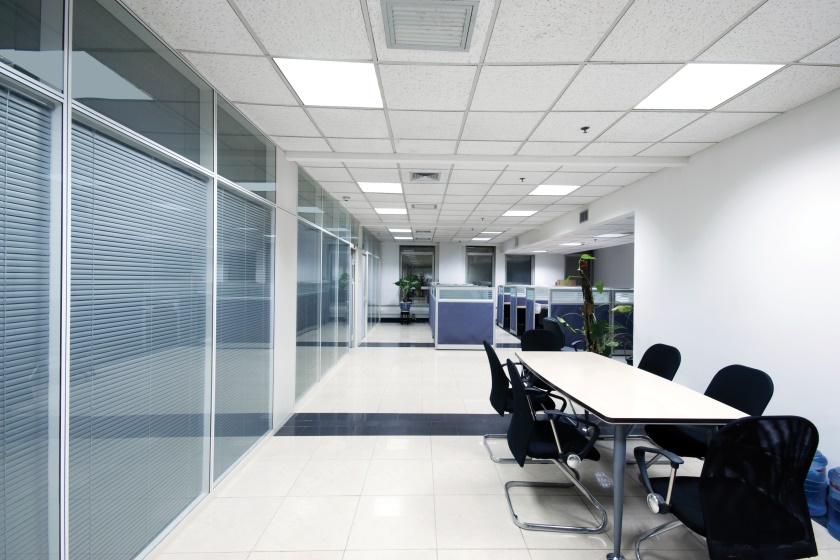

Cyanlite Tunable White LED lighting applications

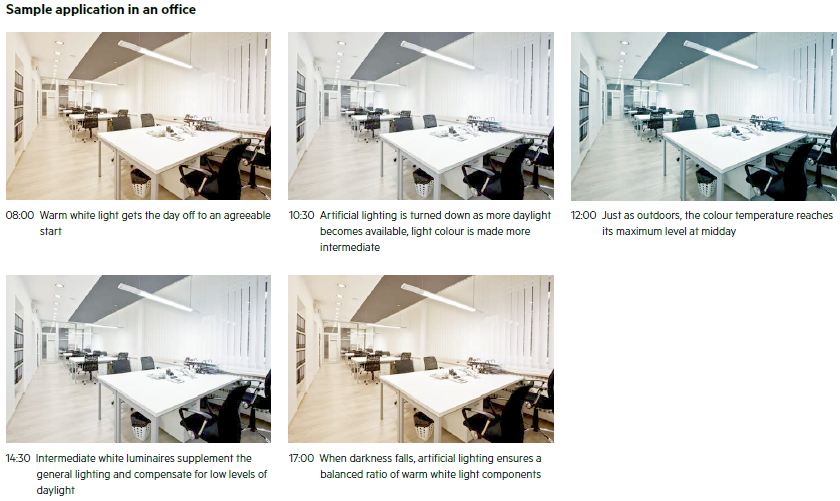

Cyanlite Tunable White LED lighting sample applications

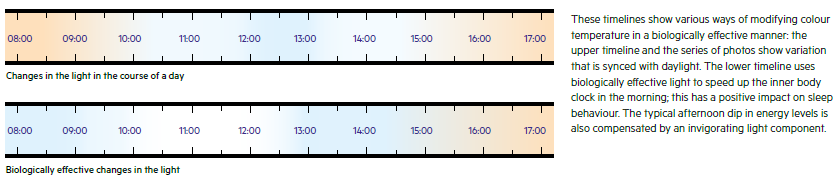

Cyanlite Tunable White LED lighting Biologically effective changes in the light CCT

Advantages

-          Dynamically changes on CCT 2700K~6500K and brightness, offering clients the right light at the right time.

-          Various of control solutions: DALI2; Bluetooth, Zigbee, WIFI; Casambi, Tuya.

-          Non-yellowing PMMA lens and Flicker Free driver as standard

-          Exceptional quality consistency thanks to fully assembled by machines

-          Easy and fast installation, tool-less installation, saving installation cost

-          Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

Features

l   Standard sizes (mm): 600x600, 625x625, 300x1200, 600x1200

l   RAL9016 white as standard, other RAL colors available on request

l   System Efficiency upto 120 lm/W

l   EN 12464-1& LG7 Compliant, UGR<19 Optional when fitted with Micro Prismatic diffuser

l   Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l   5 Years Warranty

l   Various dimming options, including 0-10V, DALI, Switch Dim etc.

l   Emergency options available

Controls

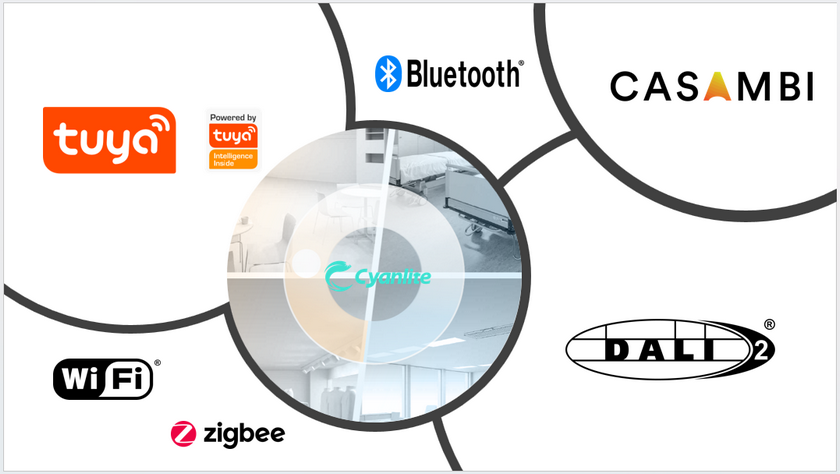

Cyanlie Tunable White HCL solutions

Cyanlite offers various of lighting control protocols and solutions to meet different projects requirements. We have both Wired solutions (DALI DT6/DT8) and Wireless solutions (WIFI/Bluetooth/ZigBee/RF2.4G) with Casambi/Tuya chips inside drivers.

DALI2 for tunable white HCL LED lighting

DALI is an industry-standardized protocol for lighting control. The protocol is specified in the multi-part international standard IEC 62386, as well as in specifications written by DiiA.

DALI-2 refers to the latest version of the DALI protocol. Compared with DALI version-1, there are many new commands and features in DALI-2. While DALI version-1 only included control gear, DALI-2 includes control devices such as application controllers and input devices (e.g. sensors), as well as bus power supplies. DALI-2 is focused on interoperability of products from different vendors, and the DALI-2 certification program confirms compatibility of products with the relevant specifications.

Cyanlite provide various brands and spec DALI2 driver to suit customers' different projects requirments.

Cyanlite TW HCL Casambi solution

Casambi is an advanced lighting control solution based on Bluetooth Low Energy (BLE). Bluetooth Low Energy is the only low power wireless technology in all modern smartphones, tablets, and even smart watches, making it the only mainstream and future proof low power radio technology in the world.

Casambi technology can be integrated into fixtures, LED-drivers, LED-modules, switches, sensors, and different kinds of control modules creating an optimal solution in terms of easy installation and functionality with minimal additional hardware and deployment costs. Casambi-ready products, that are produced by Casambi partners and are 100% compatible with Casambi’s native products.

Casambi technology provides a mesh network where all the intelligence of the system is replicated in every node, so that it creates a system with no single points of failure.

Cyanlite TW HCL LED lighting with Tuya

Tuya Smart (NYSE: TUYA, HKEX: 2391) is a leading technology company focused on making our lives smarter. Tuya does this through offering a cloud platform that connects a range of devices via the IoT. By building interconnectivity standards, Tuya bridges the intelligent needs of brands, OEMs, developers, and retail chains across a broad range of smart devices and industries.

The Company’s platform is backed by industry-leading technology complete with rigorous data protection and security. Tuya solutions empower partners and customers by improving the value of their products while making consumers’ lives more convenient through the application of technology. Through its growing commercial SaaS business, Tuya offers intelligent business solutions for a wide range of verticals.

Tuya partners with leading Fortune 500 companies from around the world to make things smarter, including Philips, Schneider Electric, Lenovo and many others.

• Standard installation as recessed in Lay-on ceilings. Suspended with pendant ropes or recessed with clips for cutout installation are optional.

Cyanlite LED backlight backlite panel light

Specifications

Model

Dimension

Product No.

Power

Luminous Flux

Efficiency @ 4000K

600 x 600

595 x 595 x 30mm

PB30W060P-CT

30W

3750lm

125lm/W

PB35W060P-CT

35W

4375lm

125lm/W

PB40W060E-CT

40W

4000lm

100lm/W

625 x 625

620 x 620 x 30mm

PB30W062P-CT

30W

3750lm

125lm/W

PB35W062P-CT

35W

4375lm

125lm/W

PB40W062E-CT

40W

4000lm

100lm/W

300 x 1200

295 x 1195 x 30mm

PB30W312P-CT

30W

3750lm

125lm/W

PB35W312P-CT

35W

4375lm

125lm/W

PB40W312E-CT

40W

4000lm

100lm/W

600 x 1200

595 x 1195 x 30mm

PB45W612P-CT

45W

5625lm

125lm/W

PB60W612E-CT

60W

6000lm

100lm/W

- Light Distribution


- UGR22 with Opalic diffuser                                          - UGR19 with Micro Prismatic diffuser

Certifications


• Downloads


Cyanlite HCL Backlite LED panel light for Lay-On ceiling datasheet/installation manual/photometric data download
